HMLQ25201B-R47MSR
lmages are for reference only.HMLQ25201B-R47MSR
FIXED IND 470NH 4.7A 27MOHM SMD
Datasheet1008 (2520 Metric)
96,595 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 nH Shielded Inductor 4.7 A 27mOhm Max 1008 (2520 Metric)
HMLQ25201B-R47MSR
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | HMLQ25201B |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Metal |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.7 A |
| Current - Saturation (Isat) | 6.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 27mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | HMLQ25201 |
| Product Attribute |  |
 |
 |
 |

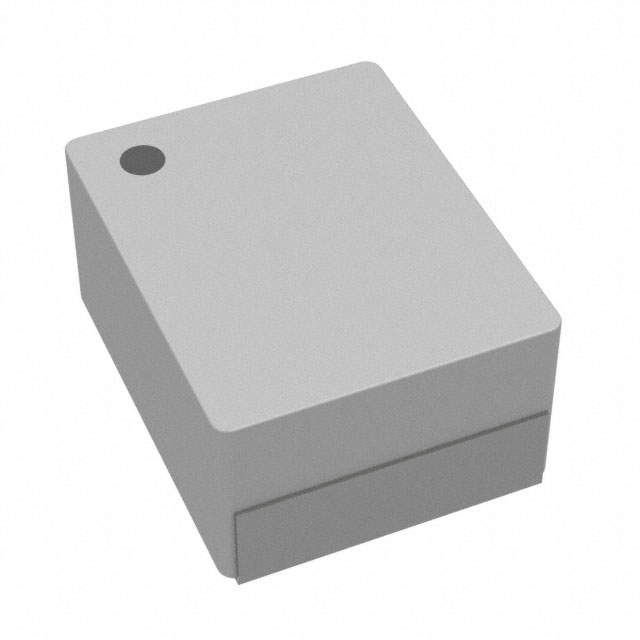

| Part Number | HMLQ25201B-1R0MSR | HMLQ25201B-1R5MSR | HMLQ25201B-3R3MSR | HMLQ25201B-R22MSR |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 4A 41 MOHM SMD | IND SMD 1.5UH HOT PRESSED CHOKE | IND SMD 3.3UH HOT PRESSED CHOKE | IND SMD 0.22UH HOT PRESSED CHOKE |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
