HMLQ32251B-4R7MS

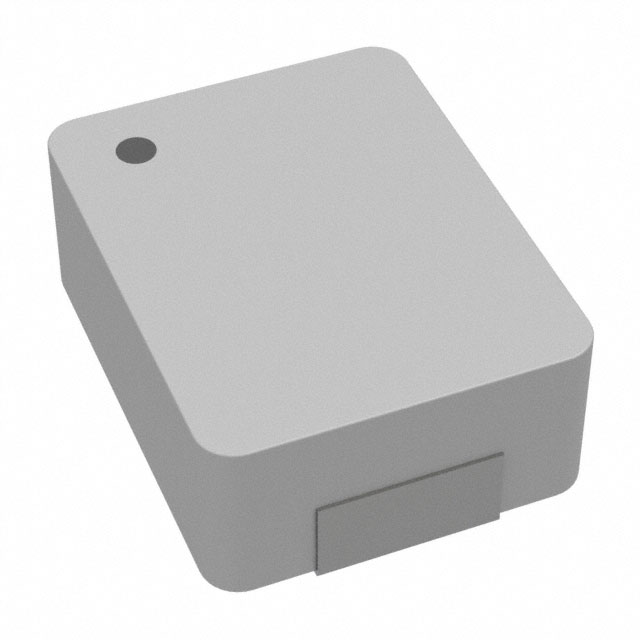

lmages are for reference only.HMLQ32251B-4R7MS
FIXED IND 4.7UH 1.7A 195 OHM SMD
Datasheet1210 (3225 Metric)
51,856 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µH Shielded Inductor 1.7 A 195mOhm Max 1210 (3225 Metric)
HMLQ32251B-4R7MS
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | HMLQ32251B |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Metal |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.7 A |
| Current - Saturation (Isat) | 2.05A |
| Shielding | Shielded |
| DC Resistance (DCR) | 195mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | HMLQ32251 |
| Product Attribute |  |
 |
 |
 |

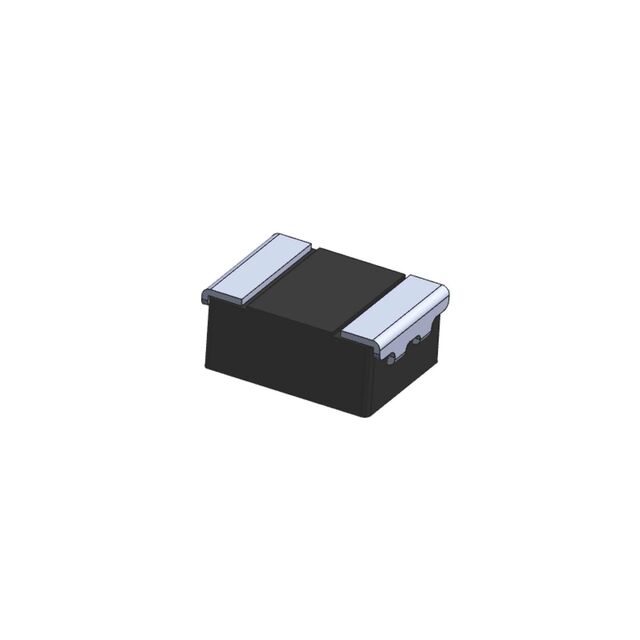

| Part Number | HMLQ32251B-1R0MS | HMLQ32251B-1R5MS | HMLQ32251B-2R2MS | HMLQ32251B-R47MS |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH SMD | IND SMD 1.5UH HOT PRESSED CHOKE | FIXED IND 2.2UH 3.2A 85MOHM SMD | FIXED IND 470NH 5.8A 22 OHM SMD |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
