Product CatalogPart Number
HMU1288NL
Manufacturer
Pulse ElectronicsDescription
XFMR CMC DUAL 2.5KV 1CT:1C TU
Datasheet
DatasheetPackage
-
In Stock
48,603 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HMU1288NL
HMU1288NL
lmages are for reference only.Payment Methods
Delivery Services
150µH Pulse Transformer 1:1 Surface Mount
Quick Inquiry
HMU1288NL
Specifications
| Category | Transformers - Pulse Transformers - |
| Manufacturer | Pulse Electronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Transformer Type | - |
| Inductance | 150µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:1 |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.395" L x 0.350" W (10.03mm x 8.89mm) |
| Height - Seated (Max) | 0.270" (6.85mm) |
| Operating Temperature | -40°C ~ 125°C |
| Weight | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |

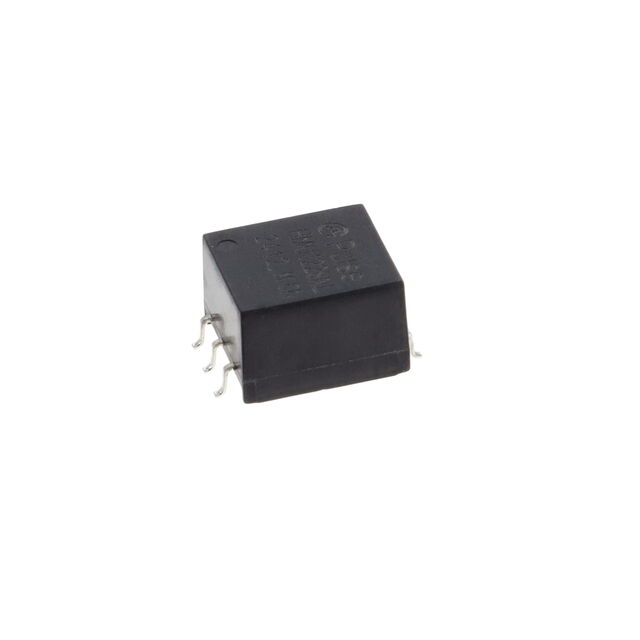

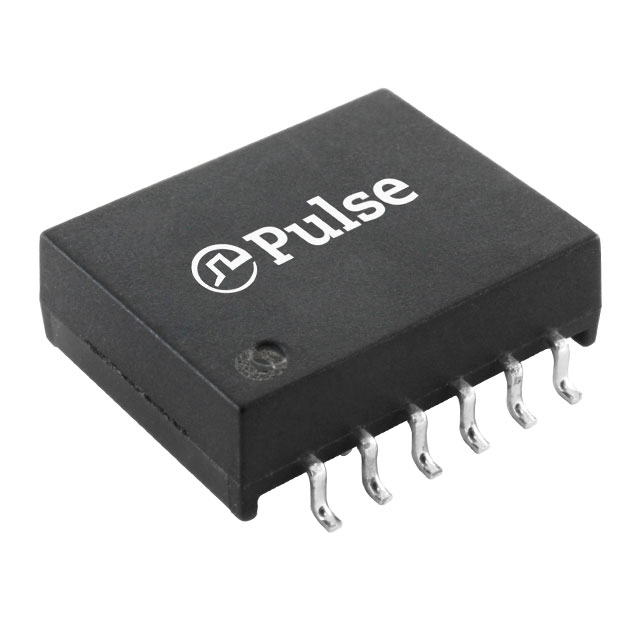

| Part Number | HMU1288NLT | HMU1228NL | HMU1228NLT | HMU2102NL |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | XFMR CMC DUAL 2.5KV 1CT:1C TY | MDL,SIN,100D,1:1,SM,TU | XFMR SGL 150UH 1CT:1CT 4.3KVDC | XFMR CMC MODULE AECQ BATT MNGT |
| Series | - | HM | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
