HP-L-0100-103-3%-RLD
lmages are for reference only.HP-L-0100-103-3%-RLD
SENSOR LINEAR 100MM CONNECTOR
DatasheetSensor Strip
20,631 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Resistive Sensor Linear Position Flexible Membrane - Linear Connector
HP-L-0100-103-3%-RLD
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Spectra Symbol |
| Series | HotPot |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear Position |
| Technology | Resistive |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | 0 ~ 100.00mm (0 ~ 3.94") |
| Output | Resistive |
| Output Signal | - |
| Actuator Type | Flexible Membrane - Linear |
| Linearity | ±3% |
| Resistance | 10 kOhms |
| Resistance Tolerance | ±20% |
| Voltage - Supply | - |
| Mounting Type | Custom |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | Sensor Strip |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

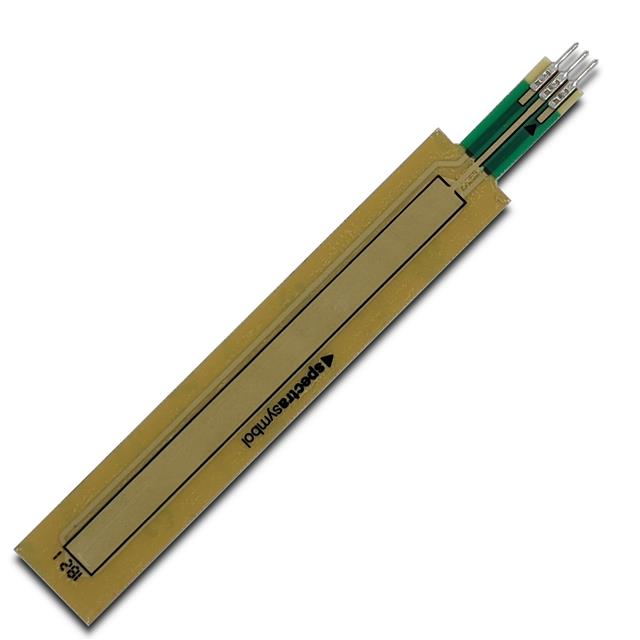

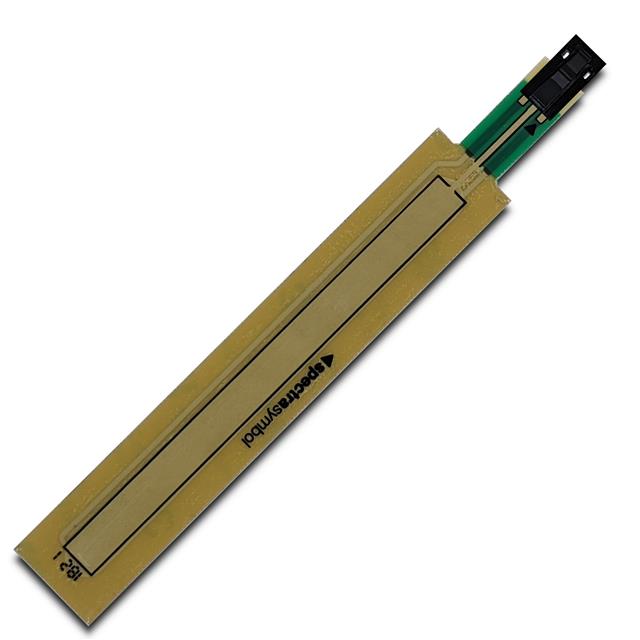

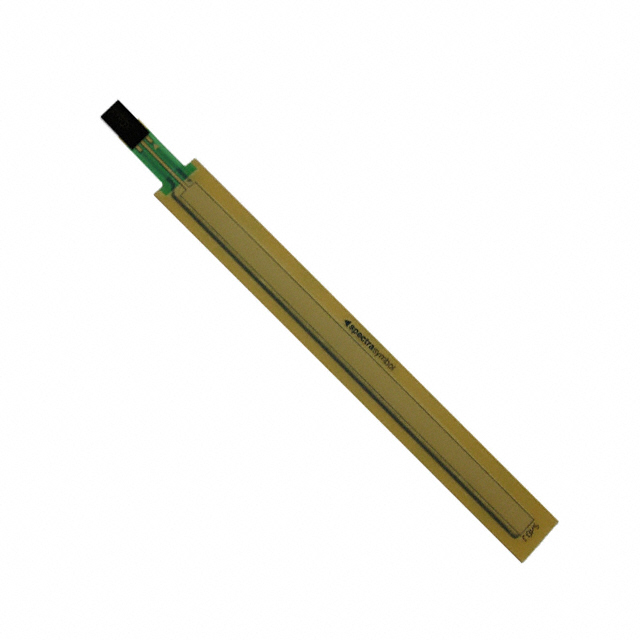

| Part Number | HP-L-0100-103-3%-RLU | HP-L-0100-103-3%-MP | HP-L-0100-103-3%-RH | HP-L-0100-103-3%-ST |
| Manufacturer | Spectra Symbol | Spectra Symbol | Spectra Symbol | Spectra Symbol |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR LINEAR 100MM CONNECTOR | SENSOR LINEAR 100MM PC PIN | SENSOR LINEAR 100MM CONNECTOR | SENSOR LINEAR 100MM SOLDER TAB |
| Series | HotPot | HotPot | HotPot | HotPot |
| Packaging | Bag | Bag | Bulk | Bag |
