HP-R-0046-353-103-3%-RLD
lmages are for reference only.HP-R-0046-353-103-3%-RLD
SENSOR ROTARY 353DEG CONNECTOR
DatasheetCircle Sensor Strip
83,172 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Resistive Sensor Rotary Position Flexible Membrane - Rotary Connector
HP-R-0046-353-103-3%-RLD
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Spectra Symbol |
| Series | HotPot |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Rotary Position |
| Technology | Resistive |
| Rotation Angle - Electrical, Mechanical | 0° ~ 353° |
| Linear Range | - |
| Output | Resistive |
| Output Signal | - |
| Actuator Type | Flexible Membrane - Rotary |
| Linearity | ±3% |
| Resistance | 10 kOhms |
| Resistance Tolerance | ±20% |
| Voltage - Supply | - |
| Mounting Type | Custom |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | Circle Sensor Strip |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

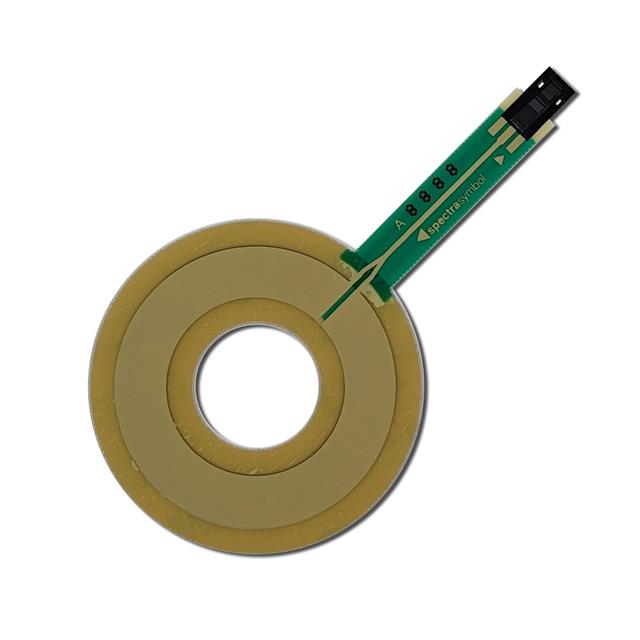

| Part Number | HP-R-0046-353-103-3%-RLU | HP-R-0046-353-103-3%-MP | HP-R-0046-353-103-3%-RH | HP-R-0046-353-103-3%-ST |
| Manufacturer | Spectra Symbol | Spectra Symbol | Spectra Symbol | Spectra Symbol |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

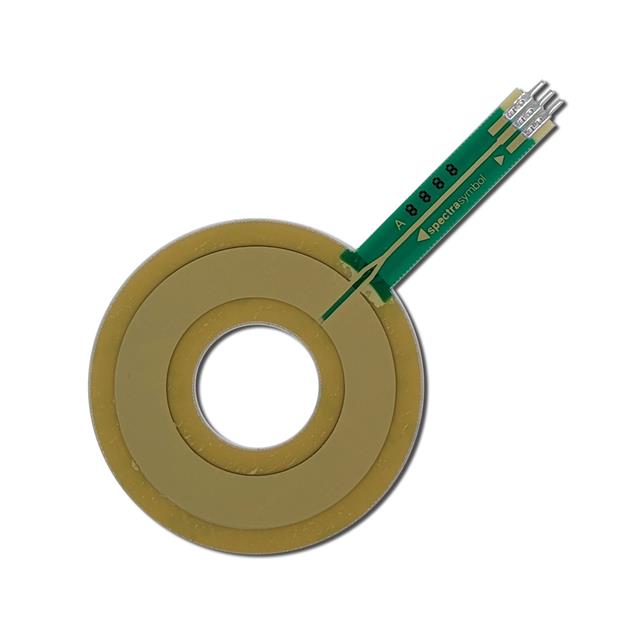

| Description | SENSOR ROTARY 353DEG CONNECTOR | SENSOR ROTARY 353DEG PC PIN | SENSOR ROTARY 353DEG CONNECTOR | SENSOR ROTARY 353DEG SOLDER TAB |
| Series | HotPot | HotPot | HotPot | HotPot |
| Packaging | Bag | Bag | Bulk | Bag |
