HPC 5040NV-220M

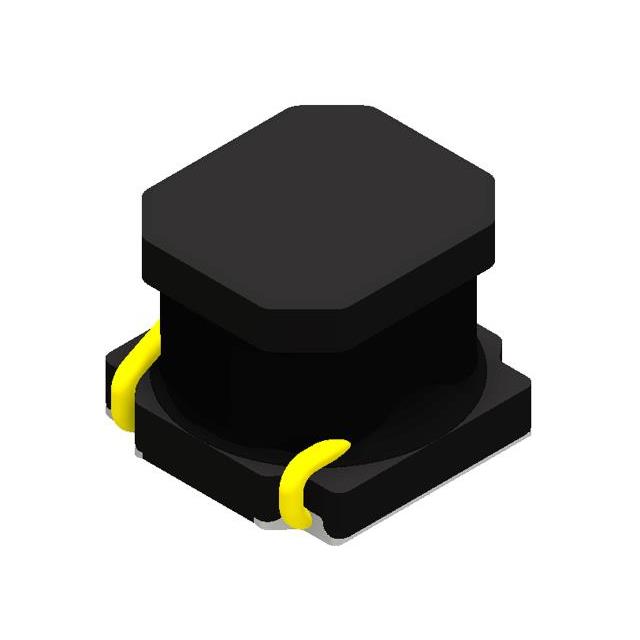

lmages are for reference only.HPC 5040NV-220M
FIXED IND 22UH 1.5A 0.123OHM SMD
DatasheetNonstandard
77,620 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µH Shielded Wirewound Inductor 1.5 A 123mOhm Nonstandard
HPC 5040NV-220M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | HPC-BMV/NV |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.5 A |
| Current - Saturation (Isat) | 1.62A |
| Shielding | Shielded |
| DC Resistance (DCR) | 123mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 5040 |
| Size / Dimension | 0.195" L x 0.195" W (4.95mm x 4.95mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Base Product Number | HPC 5040NV |
| Product Attribute |  |
 |
 |
 |
| Part Number | HPC 5040NV-2R2M | HPC 5040NF-100M | HPC 5040NF-101M | HPC 5040NF-1R0M |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.2UH 3.8A 0.021OHM SM | 10 UH SHIELDED DRUM CORE, WIREWO | 100 UH SHIELDED DRUM CORE, WIREW | 1 UH SHIELDED DRUM CORE, WIREWOU |
| Series | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
