HSCDANN010BGAA3

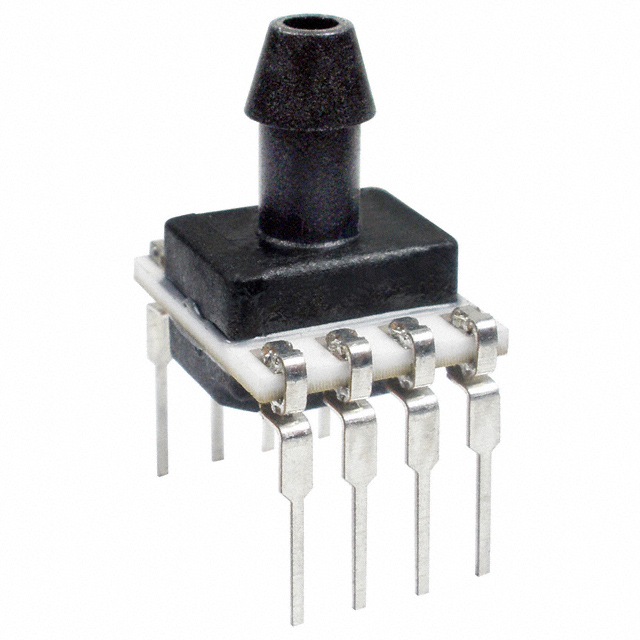

lmages are for reference only.HSCDANN010BGAA3
SENS 145.04PSIG 0.19" 2.97V DIP
Datasheet8-DIP (0.524", 13.30mm), Top Port
93,631 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 145.04PSI (1000kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 0.33 V ~ 2.97 V 8-DIP (0.524", 13.30mm), Top Port
HSCDANN010BGAA3
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® HSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | HSCDANN |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 145.04PSI (1000kPa) |
| Output Type | Analog Voltage |
| Output | 0.33 V ~ 2.97 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.19" (4.93mm) Tube |
| Port Style | Barbed |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 246.56PSI (1700kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.524", 13.30mm), Top Port |
| Supplier Device Package | 8-DIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | HSCDANN010BGAA5 | HSCDANN010KDAA5 | HSCDANN010KDAA5 | HSCDANN010NGAA5 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | SENSOR 145.04PSIG 0.19" 4.5V DIP | TRUSTABILITY PRESSURE SENSOR | TRUSTABILITY PRESSURE SENSOR | SENSOR 0.36PSIG 0.19" 4.5V 8DIP |
| Series | TruStability® HSC | TruStability® HSC | TruStability® HSC | TruStability® HSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
