HSCDANN1.6BAAA5

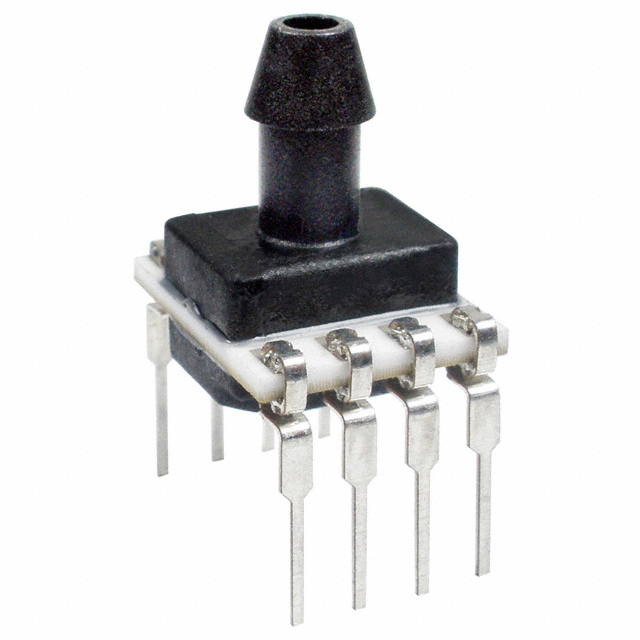

lmages are for reference only.HSCDANN1.6BAAA5
SENSOR 23.21PSIA 0.19" 4.5V 8DIP
Datasheet8-DIP (0.524", 13.30mm), Top Port
68,155 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 23.21PSI (160kPa) Absolute Male - 0.19" (4.93mm) Tube 0.5 V ~ 4.5 V 8-DIP (0.524", 13.30mm), Top Port
HSCDANN1.6BAAA5
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® HSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | HSCDANN |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 23.21PSI (160kPa) |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.19" (4.93mm) Tube |
| Port Style | Barbed |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 58.02PSI (400kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.524", 13.30mm), Top Port |
| Supplier Device Package | 8-DIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HSCDANN1.6BASA5 | HSCDANN1.6BDSA5 | HSCDAND001BASA3 | HSCDAND001PG2A3 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 23.21PSIA 0.19" 12BIT DIP | SENSOR 23.21PSID 0.19" 12BIT DIP | SENSOR 14.5PSIA 0.19" 12BIT 8DIP | SENSOR 1PSIG 0.19" 12BIT 8DIP |
| Series | TruStability® HSC | TruStability® HSC | TruStability® HSC | TruStability® HSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
