HSCSAAN004NG2A3

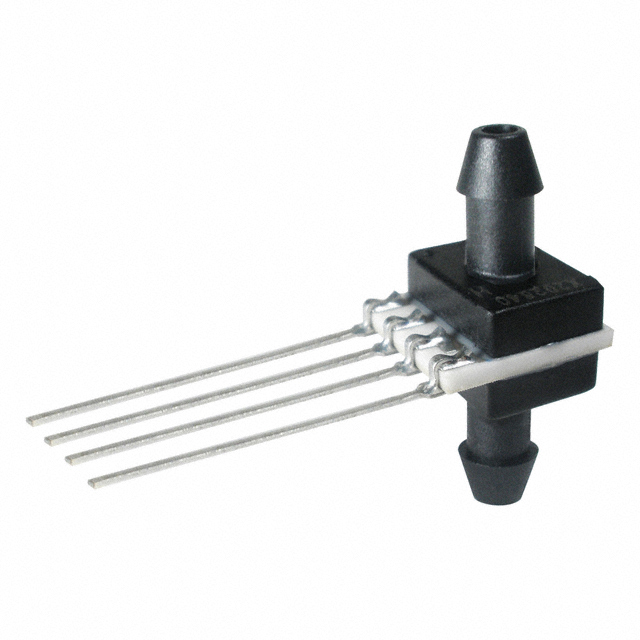

lmages are for reference only.HSCSAAN004NG2A3
SENSOR 0.15PSIG 0.19" 12BIT 4SIP
Datasheet4-SIP, Dual Ports, Opposite Sides
82,284 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 0.15PSI (1kPa) Vented Gauge Male - 0.19" (4.93mm) Tube, Dual 12 b 4-SIP, Dual Ports, Opposite Sides
HSCSAAN004NG2A3
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® HSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | HSCSAAN |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 0.15PSI (1kPa) |
| Output Type | I2C |
| Output | 12 b |
| Accuracy | ±0.25% |
| Voltage - Supply | 3.27V ~ 3.33V |
| Port Size | Male - 0.19" (4.93mm) Tube, Dual |
| Port Style | Barbed |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 9.76PSI (67.28kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, Dual Ports, Opposite Sides |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HSCSAAN001ND2A3 | HSCSAAN001PDAA5 | HSCSAAN001PGAA5 | HSCSAAN002NDAA5 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | TRUSTABILITY PRESSURE SENSOR | SENSOR 1PSID 0.19" 4.5V 4SIP | SENSOR 1PSIG 0.19" 4.5V 4SIP | SENSOR 0.07PSID 0.19" 4.5V 4SIP |
| Series | * | TruStability® HSC | TruStability® HSC | TruStability® HSC |
| Packaging | Bulk | Tube | Bulk | Bulk |
