HSCSMNT001PDAA5
lmages are for reference only.HSCSMNT001PDAA5
SENSOR 1PSID 4.5V 4SIP
Datasheet4-SIP Module
65,844 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±1PSI (±6.89kPa) Differential 0.5 V ~ 4.5 V 4-SIP Module
HSCSMNT001PDAA5
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® HSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | HSCSMNT |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | ±1PSI (±6.89kPa) |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Port Style | No Port |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | ±10PSI (±68.95kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

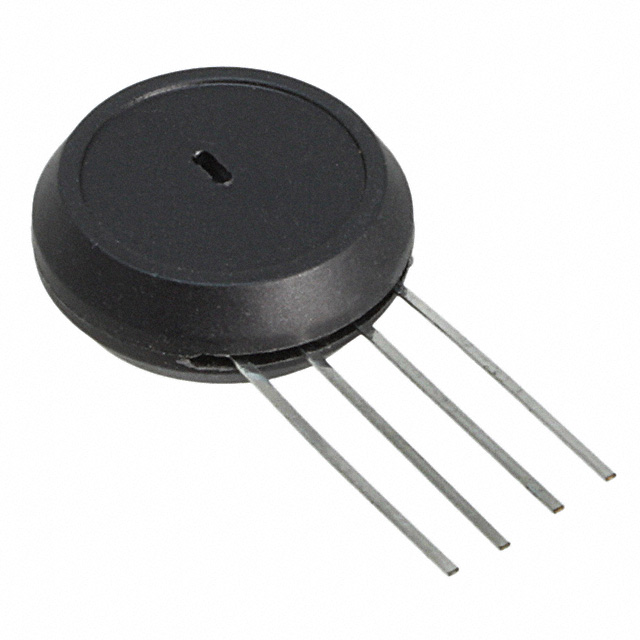

| Part Number | HSCSMND060PDAA5 | HSCSMNN001PDAA3 | HSCSMNN010BGAA3 | HSCSMNN010BGAA3 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | SENSOR 60PSID 4.5V 4SIP | SENSOR 1PSID 2.97V 4SIP | TRUSTABILITY PRESSURE SENSOR | TRUSTABILITY PRESSURE SENSOR |
| Series | TruStability® HSC | TruStability® HSC | TruStability® HSC | TruStability® HSC |
| Packaging | Bulk | Tube | Bulk | Bulk |
