HSF 1210F2SF-900T02
lmages are for reference only.HSF 1210F2SF-900T02
2 LINE COMMON MODE CHOKE SURFACE
DatasheetHorizontal, 4 PC Pad
84,685 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 200mA DCR 400mOhm
HSF 1210F2SF-900T02
| Category | Filters - Common Mode Chokes - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | HSF1210F2SF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 200mA |
| DC Resistance (DCR) (Max) | 400mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.047" L x 0.039" W (1.20mm x 1.00mm) |
| Height (Max) | 0.035" (0.90mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 90 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

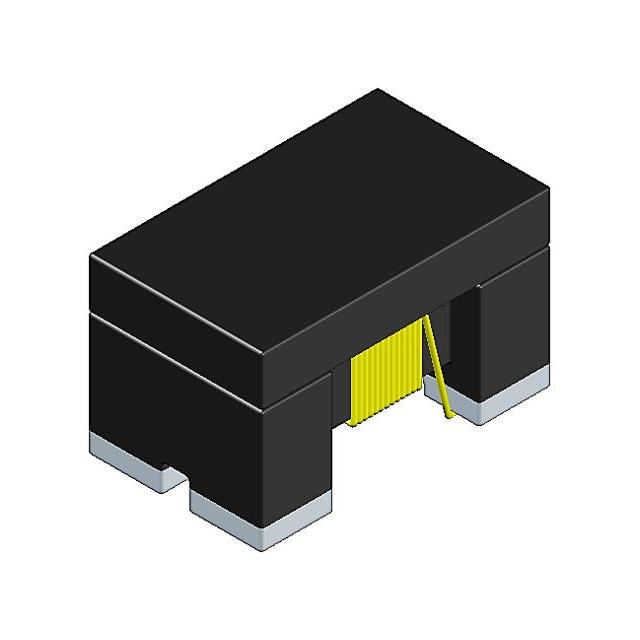

| Part Number | HSF 1210F2SF-500T02 | HSF 1210F2SF-600T02 | HSF 2012F2SF-121T03-H | HSF 2012F2SF-300T04-H |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2 LINE COMMON MODE CHOKE SURFACE | 2 LINE COMMON MODE CHOKE SURFACE | 2 LINE COMMON MODE CHOKE SURFACE | 2 LINE COMMON MODE CHOKE SURFACE |
| Series | HSF1210F2SF | HSF1210F2SF | HSF2012F2SF | HSF2012F2SF |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
