Product CatalogPart Number
HSMF-C173
Manufacturer
Broadcom LimitedDescription
LED GREEN/RED DIFFUSED 0605 SMD
Datasheet
DatasheetPackage
0605 (1613 Metric)
In Stock
96,599 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HSMF-C173
HSMF-C173

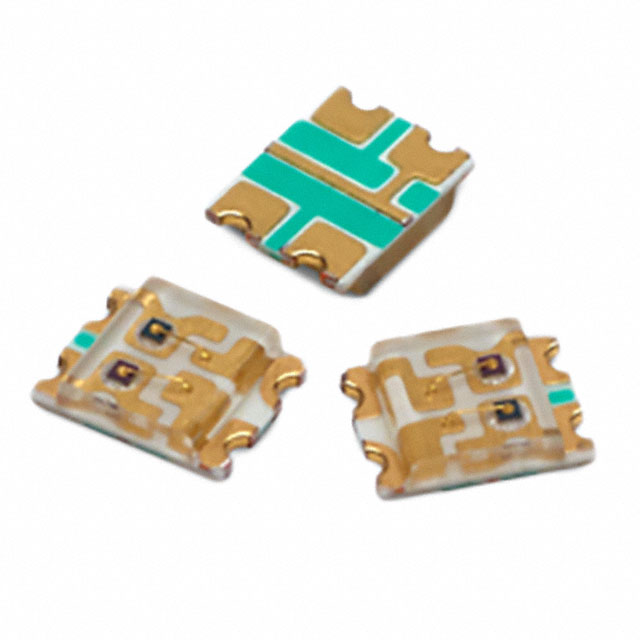

lmages are for reference only.Payment Methods
Delivery Services
Green, Red 525nm Green, 624nm Red LED Indication - Discrete 3.4V Green, 2V Red 0605 (1613 Metric)
Quick Inquiry
HSMF-C173
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 112.5mcd Green, 45mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 3.4V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 150° Green, 140° Red |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 525nm Green, 624nm Red |
| Wavelength - Peak | 517nm Green, 635nm Red |
| Features | - |
| Package / Case | 0605 (1613 Metric) |
| Supplier Device Package | 0605 |
| Size / Dimension | 1.60mm L x 1.25mm W |
| Height (Max) | 0.40mm |
| Base Product Number | HSMF-C173 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | HSMF-C171 | HSMF-C172 | HSMF-C174 | HSMF-C175 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED BLUE/ORNG DIFFUSED 0605 SMD | LED ORANGE/YLW-GRN DIFF 0605 SMD | LED RED/YL-GRN DIFFUSED 0605 SMD | LED AMB/YL/GRN DIFFUSED 0605 SMD |
| Series | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
