Product CatalogPart Number
HSRP6-48S05
Manufacturer
P-DUKE TechnologyDescription
DC DC CONVERTER 5V 3W
Datasheet
DatasheetPackage
3-SIP Module
In Stock
32,713 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HSRP6-48S05
HSRP6-48S05
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 5V 600mA 9V - 72V Input
Quick Inquiry
HSRP6-48S05
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | P-DUKE Technology |
| Series | HSRP6 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 72V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 600mA |
| Power (Watts) | 3 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.47" L x 0.34" W x 0.53" H (12.0mm x 8.6mm x 13.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | HSRP6 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

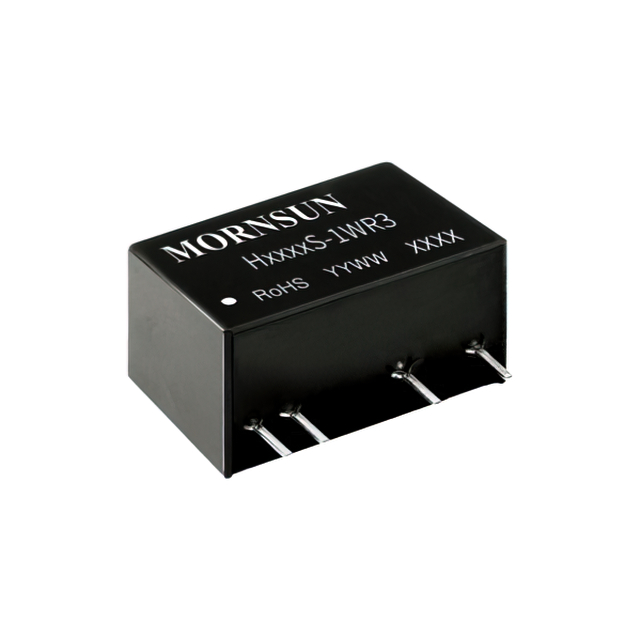

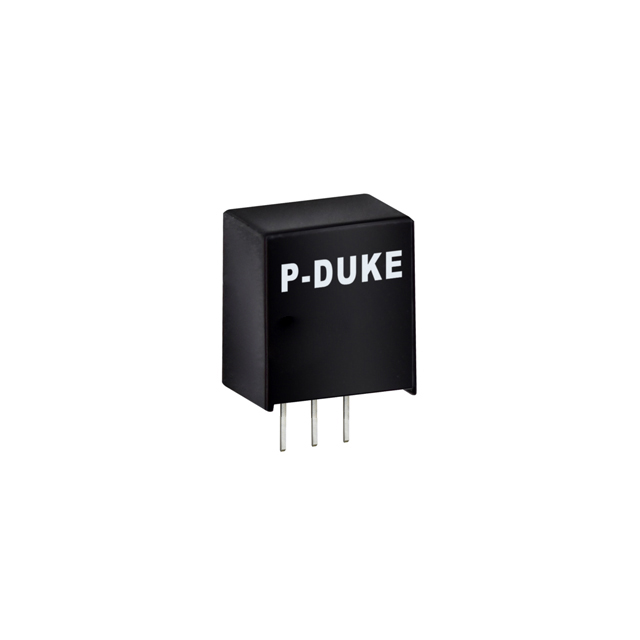

| Part Number | HSRP6-48S09 | HSRP6-48S15 | HEA2-24-5 | H2409S-1WR3 |
| Manufacturer | P-DUKE Technology | P-DUKE Technology | Daburn Electronics | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 9V 5.4W | DC DC CONVERTER 15V 9W | DC DC CONVERTER +/-5V 2W | ISOLATED MODULE DC DC CONVERTER1 |
| Series | P-DUKE Technology | P-DUKE Technology | Daburn Electronics | |
| Packaging | Tube | Tube | Tube | H_S-1WR3 (1W) |
