HUF76121S3S

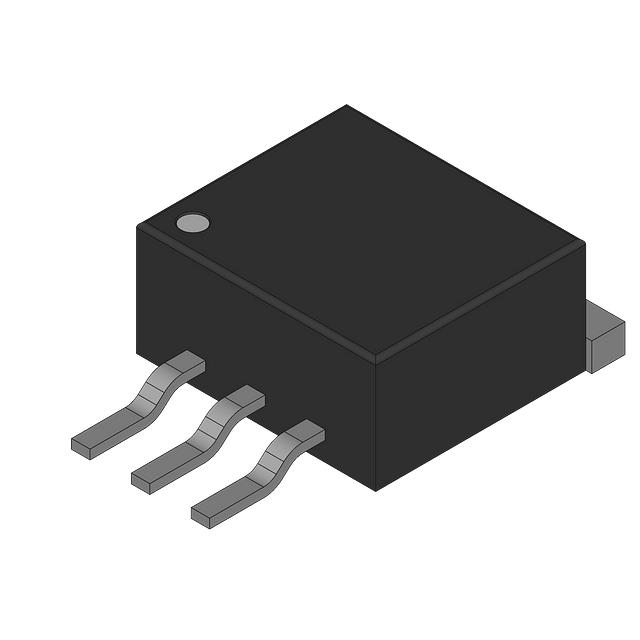

lmages are for reference only.HUF76121S3S
N-CHANNEL POWER MOSFET
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
56,595 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 47A (Tc) 75W (Tc) Surface Mount TO-263 (D2PAK)
HUF76121S3S
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Fairchild Semiconductor |
| Series | UltraFET™ |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 47A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 21mOhm @ 47A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 850 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 75W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263 (D2PAK) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | HUF76121S3 | HUF76121S3ST | HUF76121D3S | HUF76121D3ST |
| Manufacturer | Harris Corporation | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | N-CHANNEL POWER MOSFET | N-CHANNEL POWER MOSFET | N-CHANNEL POWER MOSFET | N-CHANNEL POWER MOSFET |
| Series | * | UltraFET™ | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
