HV1812Y152JXVARHV

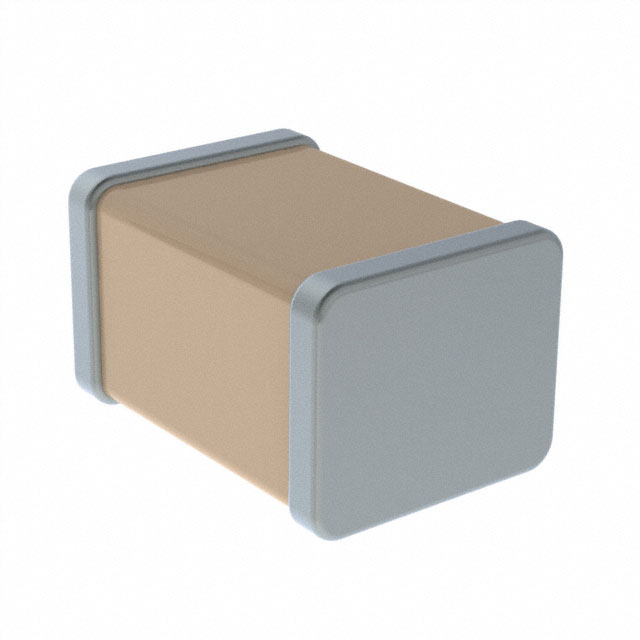

lmages are for reference only.HV1812Y152JXVARHV
CAP CER 1500PF 4KV X7R 1812
Datasheet1812 (4532 Metric)
58,676 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1500 pF ±5% 4000V (4kV) Ceramic Capacitor X7R 1812 (4532 Metric)
HV1812Y152JXVARHV
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Vitramon |
| Series | HV |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1500 pF |
| Tolerance | ±5% |
| Voltage - Rated | 4000V (4kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.106" (2.70mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HV1812Y152JXHARHV | HV1812Y152JXHATHV | HV1812Y152JXVATHV | HV1812Y102JXHARHV |
| Manufacturer | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 1500PF 3KV X7R 1812 | CAP CER 1500PF 3KV X7R 1812 | CAP CER 1500PF 4KV X7R 1812 | CAP CER 1000PF 3KV X7R 1812 |
| Series | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
