HV731JRTTD8254F

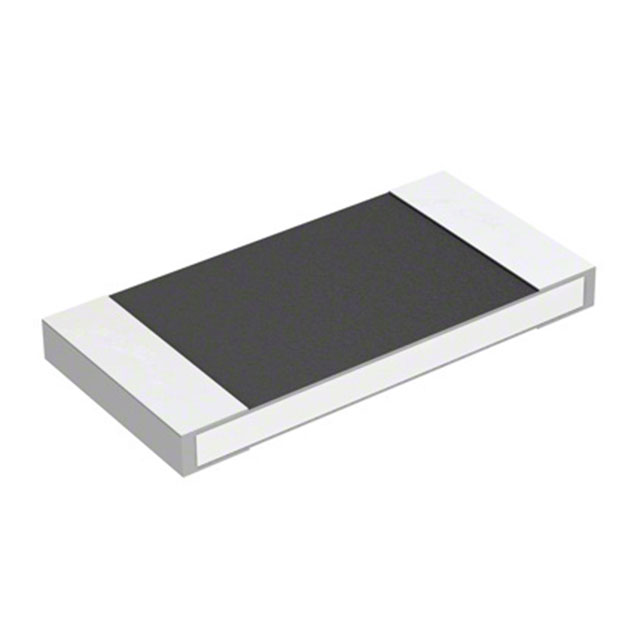

lmages are for reference only.HV731JRTTD8254F
RES 8.25 MOHM 1% 1/10W 0603
Datasheet0603 (1608 Metric)
88,858 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8.25 MOhms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, High Voltage Thick Film
HV731JRTTD8254F
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | KOA Speer Electronics, Inc. |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | KOA Speer Electronics, Inc. |
| Series | HV73-RT |
| Resistance | 8.25 MOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.1W, 1/10W |
| Composition | Thick Film |
| Features | Anti-Sulfur, High Voltage |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

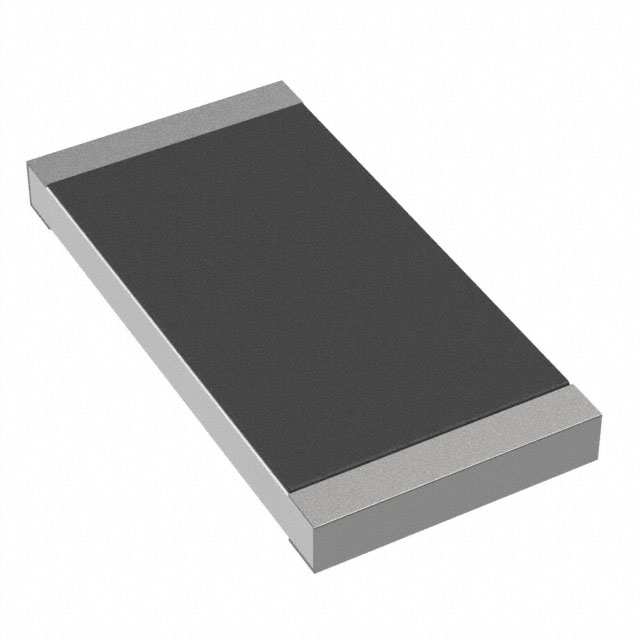

| Part Number | HV731JRTTD8202F | HV731JRTTD8203F | HV731JRTTD8204F | HV731JRTTD823G |
| Manufacturer | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 82K OHM 1% 1/10W 0603 | RES 820K OHM 1% 1/10W 0603 | RES 8.2 MOHM 1% 1/10W 0603 | RES 82K OHM 2% 1/10W 0603 |
| Series | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | ||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
