HV73V2BTTD514G

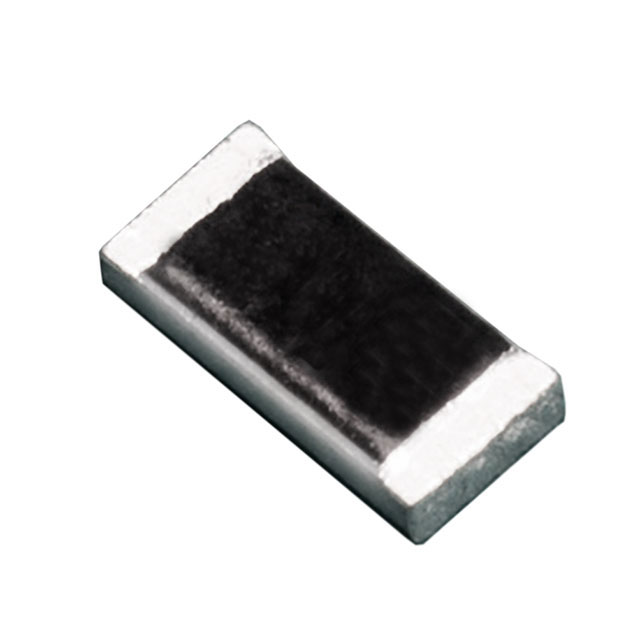

lmages are for reference only.HV73V2BTTD514G
RES 510K OHM 2% 1/3W 1206
Datasheet1206 (3216 Metric)
78,450 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
510 kOhms ±2% 0.333W, 1/3W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, High Voltage, Moisture Resistant Thick Film
HV73V2BTTD514G
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | KOA Speer Electronics, Inc. |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | KOA Speer Electronics, Inc. |
| Series | HV73V |
| Resistance | 510 kOhms |
| Tolerance | ±2% |
| Power (Watts) | 0.333W, 1/3W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, High Voltage, Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | HV73V2B |
| Product Attribute |  |
 |
 |
 |
| Part Number | HV73V2BTTD514J | HV73V2BTTD5103D | HV73V2BTTD5103F | HV73V2BTTD5104F |
| Manufacturer | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 510K OHM 5% 1/3W 1206 | RES 510K OHM 0.5% 1/3W 1206 | RES 510K OHM 1% 1/3W 1206 | RES 5.1M OHM 1% 1/3W 1206 |
| Series | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
