Product CatalogPart Number
HX6400NL
Manufacturer
Pulse ElectronicsDescription
MODULE QUAD 1GPP 1:1 SMT TU
Datasheet
DatasheetPackage
-
In Stock
56,716 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HX6400NL
HX6400NL
lmages are for reference only.Payment Methods
Delivery Services
150µH LAN 1000 Base-T Pulse Transformer 1:1 Surface Mount
Quick Inquiry
HX6400NL
Specifications
| Category | Transformers - Pulse Transformers - |
| Manufacturer | Pulse Electronics |
| Series | HX6400NL |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Transformer Type | LAN 1000 Base-T |
| Inductance | 150µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:1 |
| Mounting Type | Surface Mount |
| Size / Dimension | 1.120" L x 0.680" W (28.45mm x 17.27mm) |
| Height - Seated (Max) | 0.440" (11.18mm) |
| Operating Temperature | -40°C ~ 85°C |
| Weight | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

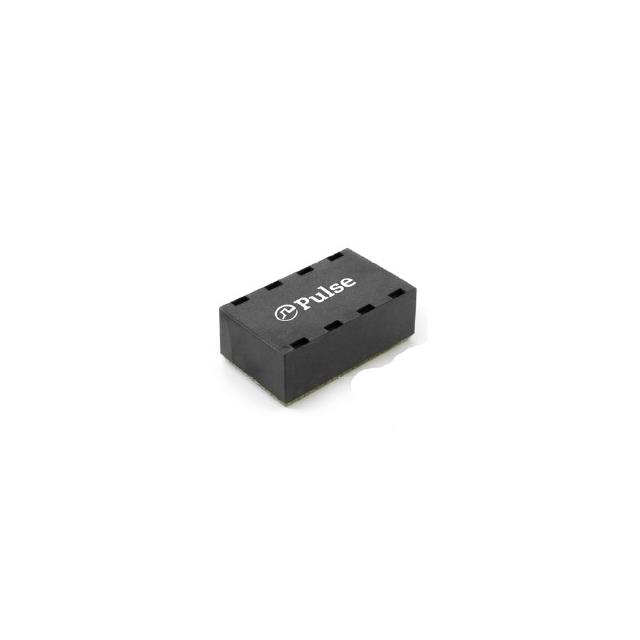

| Part Number | HX6400NLT | HX0060NL | HX0068ANL | HX0068ANLT |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | |

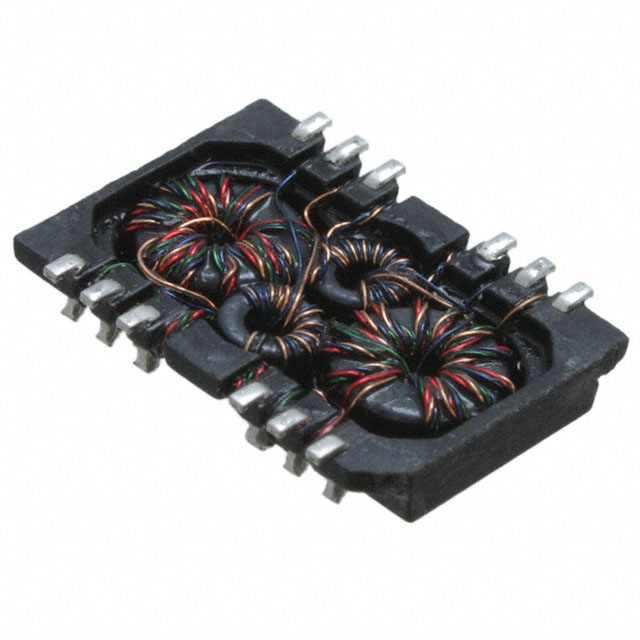

| Description | MDL QUAD 1GPP 1:1 SM TR | HX0060NL | MODULE XFMR 1:1 100D SIN SMD | MODULE XFMR 1:1 100D SIN SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
