IB1215S-W75R3
lmages are for reference only.IB1215S-W75R3
DC-DC ISOLATED 0.75 W 11.4~12.6V
Datasheet4-SIP Module
34,619 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 50mA 11.4V - 12.6V Input
IB1215S-W75R3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 11.4V |
| Voltage - Input (Max) | 12.6V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 50mA |
| Power (Watts) | 750 mW |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 74% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, UKCA |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

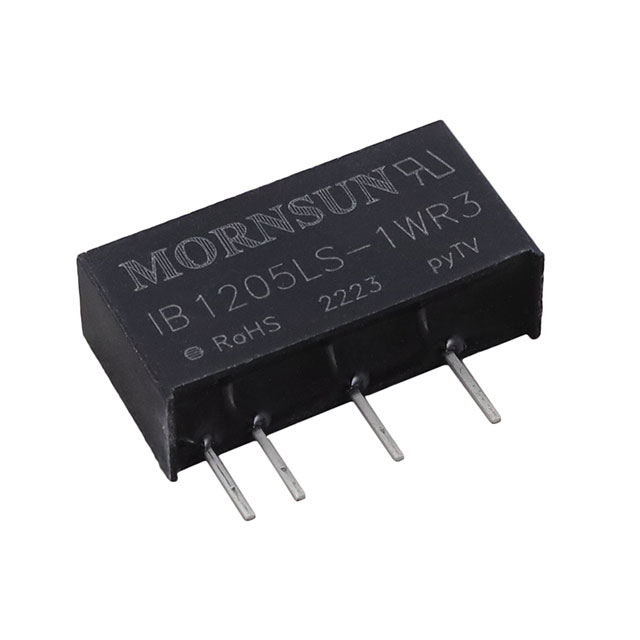

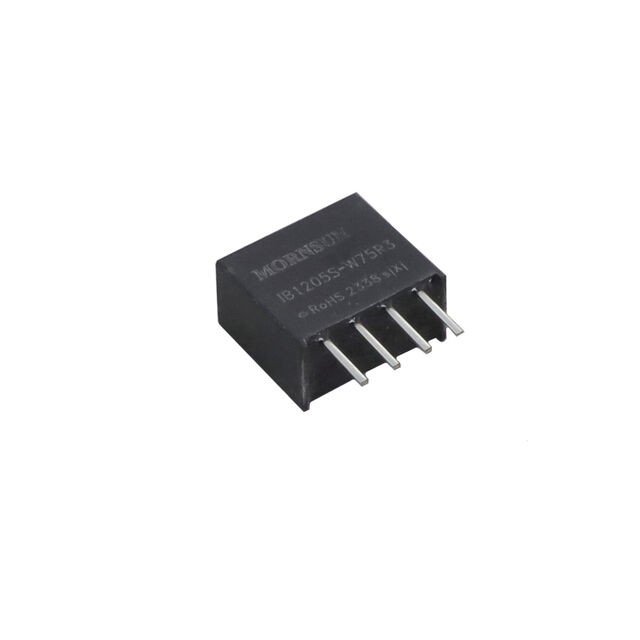

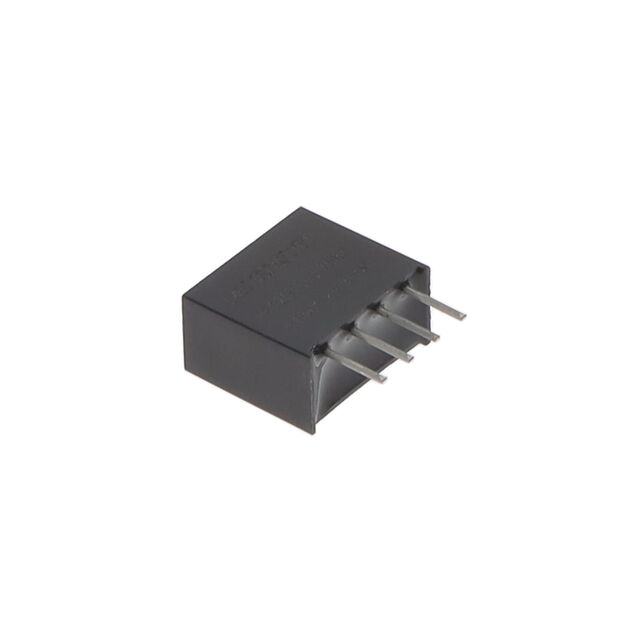

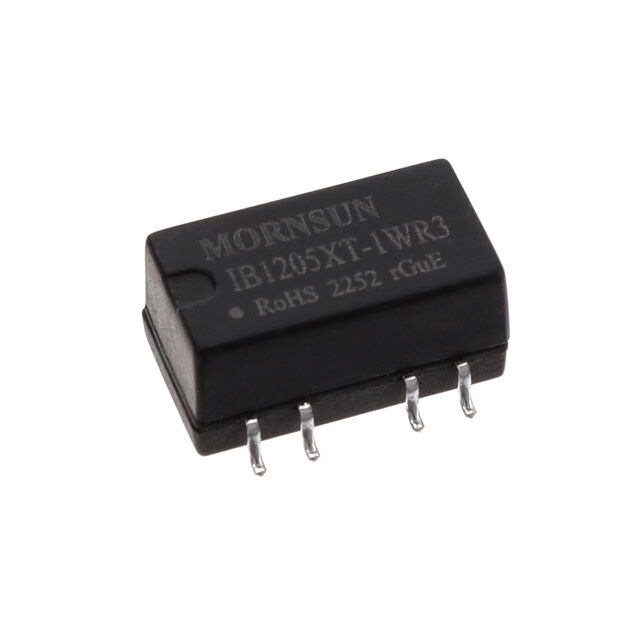

| Part Number | IB1203S-W75R3 | IB1205LS-1WR3 | IB1205S-W75R3 | IB1205XT-1WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC-DC ISOLATED 0.75 W 11.4~12.6V | DC-DC ISOLATED 1 W 11.4~12.6V | DC-DC ISOLATED 0.75 W 11.4~12.6V | DC-DC ISOLATED 1 W 11.4~12.6V |
| Series | ||||
| Packaging | IB S-W75R3 | IB_LS-1WR3 | IB_S-W75R3 | IB_XT-1WR3 |
