IC0805B122R-10

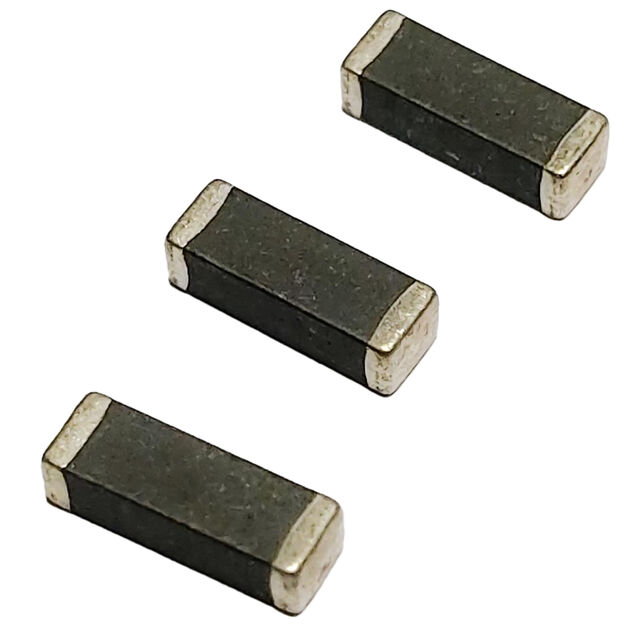

lmages are for reference only.IC0805B122R-10
FIXED IND 1.2UH 250MA 500MOHM SM
Datasheet0805 (2012 Metric)
77,893 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.2 µH Unshielded Multilayer Inductor 250 mA 500mOhm Max 0805 (2012 Metric)
IC0805B122R-10
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | IC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 1.2 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 250 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 500mOhm Max |
| Q @ Freq | 45 @ 10MHz |
| Frequency - Self Resonant | 65MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.057" (1.45mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | IC0805B101R-10 | IC0805B102R-10 | IC0805B182R-10 | IC0805A103R-10 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100NH 250MA 300MOHM SM | FIXED IND 1UH 50MA 400 MOHM SMD | FIXED IND 1.8UH 50MA 600MOHM SMD | FIXED IND 10UH 15MA 1.15 OHM SMD |
| Series | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
