ICTE18CHE3_A/D
lmages are for reference only.ICTE18CHE3_A/D
TVS DIODE 18VWM 25.5VC 1.5KE
DatasheetDO-201AA, DO-27, Axial
65,270 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25.5V Clamp 50A Ipp Tvs Diode Through Hole 1.5KE
ICTE18CHE3_A/D
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 18V |
| Voltage - Breakdown (Min) | 21.2V |
| Voltage - Clamping (Max) @ Ipp | 25.5V |
| Current - Peak Pulse (10/1000µs) | 50A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | 1.5KE |
| Base Product Number | ICTE18 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |

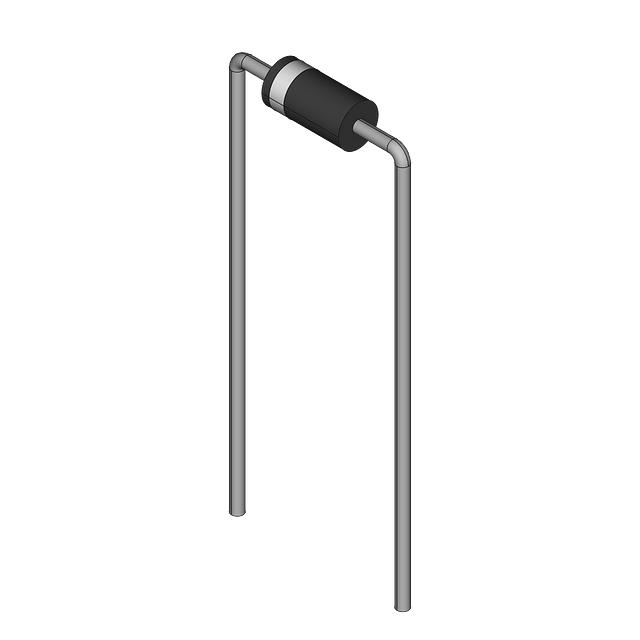

| Part Number | ICTE18CHE3_A/C | ICTE-010 | ICTE-015G | ICTE-018G |
| Manufacturer | Vishay General Semiconductor - Diodes Division | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DIODE 18VWM 25.5VC 1.5KE | DIODE TVS SINGLE UNI-DIR 10V 1.5 | TVS DIODE 15VWM 25VC AXIAL | TVS DIODE 18VWM 30VC AXIAL |
| Series | Vishay General Semiconductor - Diodes Division | onsemi | onsemi | onsemi |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Bulk |
