IF0512XT-1WR3
lmages are for reference only.IF0512XT-1WR3
DC-DC ISOLATED 1 W 4.75~5.25V
Datasheet10-SMD Module, 6 Leads
84,446 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 84mA 4.75V - 5.25V Input
IF0512XT-1WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 84mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 71% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module, 6 Leads |
| Size / Dimension | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, UKCA |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |

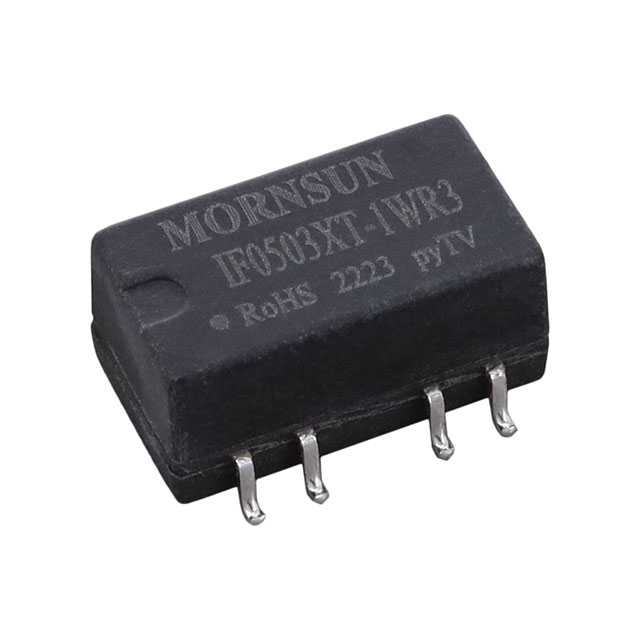

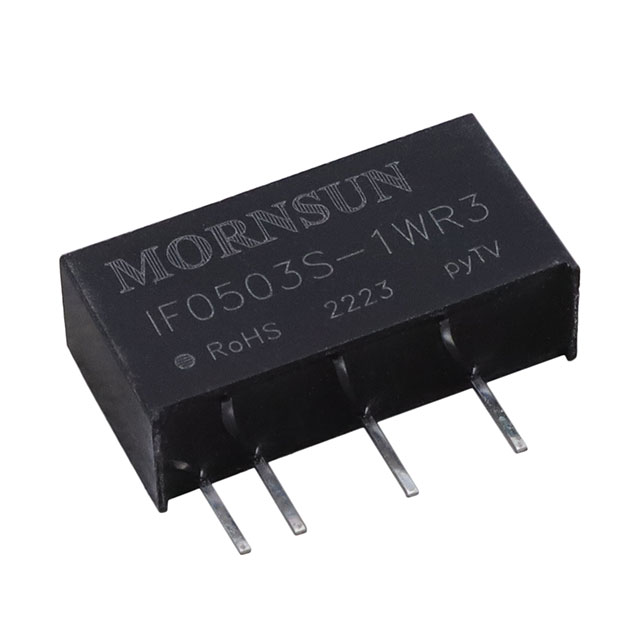

| Part Number | IF0512XT-1WR3-TR | IF0503S | IF0503S-1WR3 | IF0503XT-1WR3 |
| Manufacturer | Mornsun America, LLC | XP Power | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC-DC ISOLATED 1 W 4.75~5.25V | DC DC CONVERTER 3.3V 1W | DC DC CONVERTER 3.3V 825MW | DC-DC ISOLATED 1 W 4.75~5.25V |
| Series | XP Power | |||
| Packaging | IF05 XT-1WR3-TR | Tube | IF05_S-1WR3 | IF05_XT-1WR3 |
