ILQ32-X001
lmages are for reference only.ILQ32-X001
OPTOISO 5.3KV 4CH DARL 16DIP
Datasheet16-DIP (0.300", 7.62mm)
16,237 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Darlington Output 5300Vrms 4 Channel 16-DIP
ILQ32-X001
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 4 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 500% @ 10mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 15µs, 30µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 30V |
| Current - Output / Channel | 125mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 1V |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-DIP |
| Base Product Number | ILQ32 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

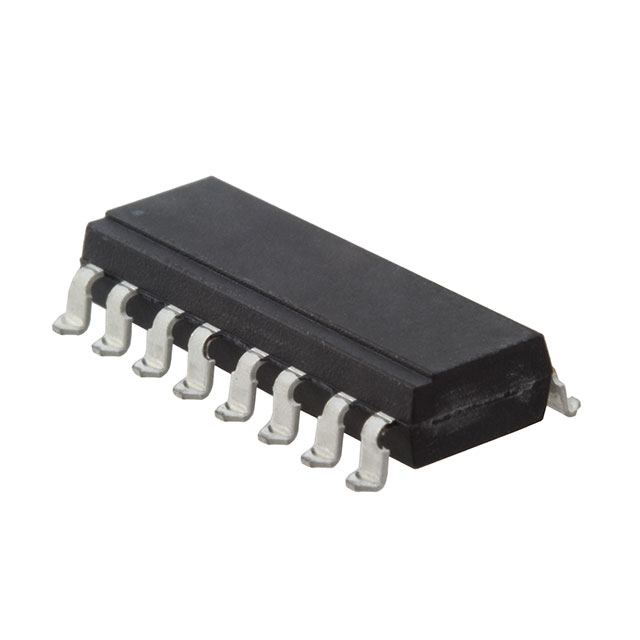

| Part Number | ILQ32-X007 | ILQ32-X007T | ILQ32-X009 | ILQ32-X009T |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 5.3KV 4CH DARL 16SMD | OPTOISO 5.3KV 4CH DARL 16SMD | OPTOISO 5.3KV 4CH DARL 16SMD | OPTOISO 5.3KV 4CH DARL 16SMD |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
