ILQ5

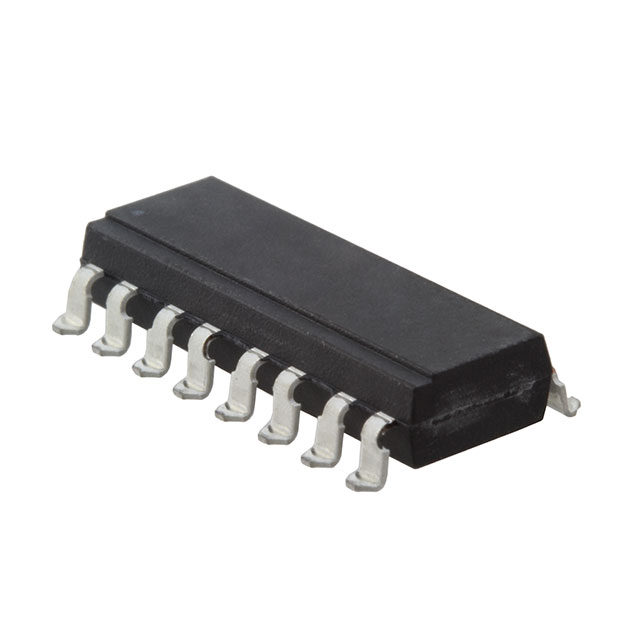

lmages are for reference only.ILQ5
16PIN TRANSISTOR DETECTOR, HIGH
Datasheet16-DIP (0.300", 7.62mm)
42,684 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5300Vrms 4 Channel 16-DIP
ILQ5
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Isocom Components 2004 LTD |
| Series | ILQ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 4 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 50% @ 10mA |
| Current Transfer Ratio (Max) | 400% @ 10mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 2µs, 2µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -25°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-DIP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | ILQ1 | ILQ1 | ILQ1-X006 | ILQ1-X007 |
| Manufacturer | Vishay Semiconductor Opto Division | Isocom Components 2004 LTD | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 5.3KV 4CH TRANS 16-DIP | 16PIN TRANSISTOR DETECTOR, HIGH | OPTOISO 5.3KV 4CH TRANS 16DIP | OPTOISO 5.3KV 4CH TRANS 16SMD |
| Series | - | ILQ | - | - |
| Packaging | Tube | Tube | Tube | Tube |
