IMX102U-TL
lmages are for reference only.IMX102U-TL
IC LED DRIVER CTRLR PWM 28HSOP
Datasheet28-BSOP (0.295", 7.50mm Width) + 2 Heat Tabs
86,597 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 1 Output DC DC Controller Flyback Analog, PWM Dimming 28-HSOP
IMX102U-TL
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Power Integrations |
| Series | InnoSwitch™3-MX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | DC DC Controller |
| Topology | Flyback |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 4.75V |
| Voltage - Supply (Max) | 5.25V |
| Voltage - Output | 3V ~ 22V |
| Current - Output / Channel | - |
| Frequency | - |
| Dimming | Analog, PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-BSOP (0.295", 7.50mm Width) + 2 Heat Tabs |
| Supplier Device Package | 28-HSOP |
| Base Product Number | IMX102 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | IMX101J-TL | IMX101U-TL | IMX111J-TL | IMX111U-TL |
| Manufacturer | Power Integrations | Power Integrations | Power Integrations | Power Integrations |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

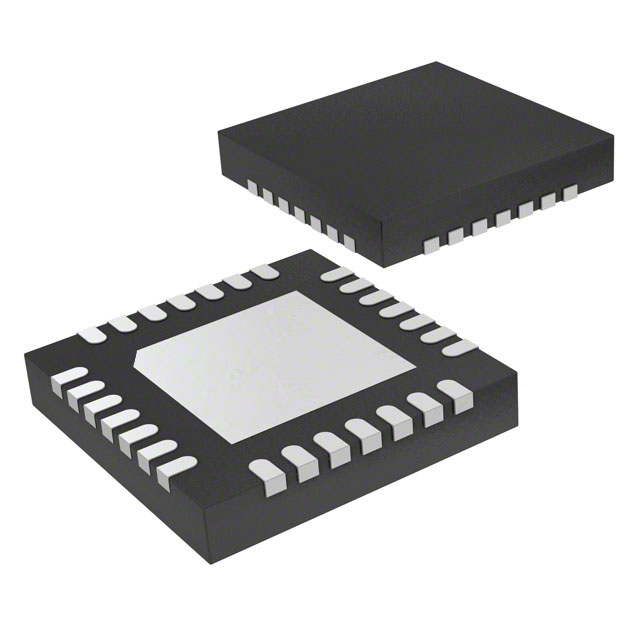

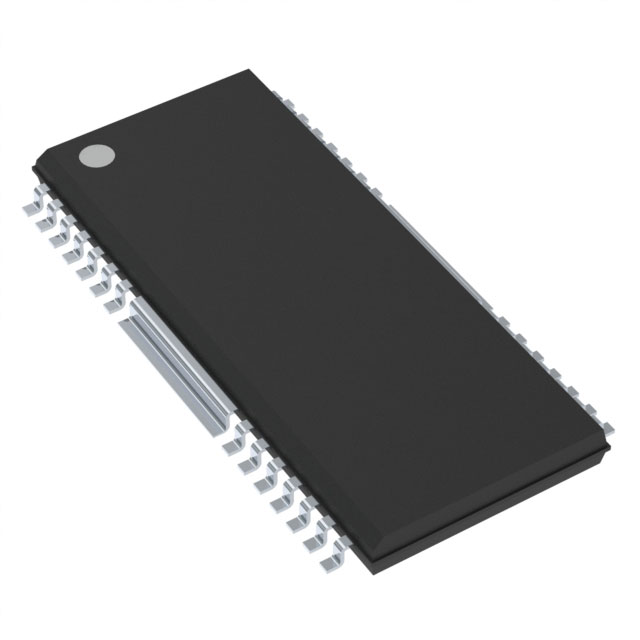

| Description | IC LED DRIVER CTRLR PWM 28QFN | IC LED DRIVER CTRLR PWM 28HSOP | IC LED DRIVER CTRLR PWM 28QFN | IC LED DRIVER CTRLR PWM 28HSOP |
| Series | InnoSwitch™3-MX | InnoSwitch™3-MX | InnoSwitch™3-MX | InnoSwitch™3-MX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
