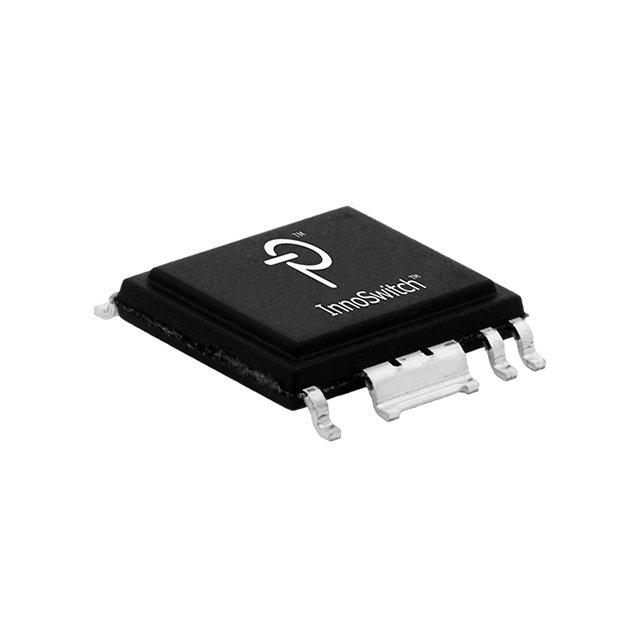

INN2023K
lmages are for reference only.INN2023K
IC OFFLINE SW MULT TOP 16ESOP
Datasheet16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
23,954 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Converter Offline Flyback, Secondary Side SR Topology 100kHz eSOP-R16B
INN2023K
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Power Integrations |
| Series | InnoSwitch™-CH |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback, Secondary Side SR |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 60% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 12 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads |
| Supplier Device Package | eSOP-R16B |
| Mounting Type | Surface Mount |
| Base Product Number | INN2023 |
| Voltage - Start Up | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | INN2023K-TL | INN2003K | INN2003K-TL | INN2004K |
| Manufacturer | Power Integrations | Power Integrations | Power Integrations | Power Integrations |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC OFFLINE SW MULT TOP 16ESOP | IC OFFLINE SW MULT TOP 16ESOP | IC OFFLINE SW MULT TOP 16ESOP | IC OFFLINE SW MULT TOP 16ESOP |
| Series | InnoSwitch™-CH | InnoSwitch™-CH | InnoSwitch™-CH | InnoSwitch™-CH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
