Product CatalogPart Number
INND-TS40DRCB
Manufacturer
InoluxDescription
DISPLAY 7-SEG 0.4" SGL RED 10DIP
Datasheet
DatasheetPackage
10-DIP (0.300", 7.62mm)
In Stock
42,682 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

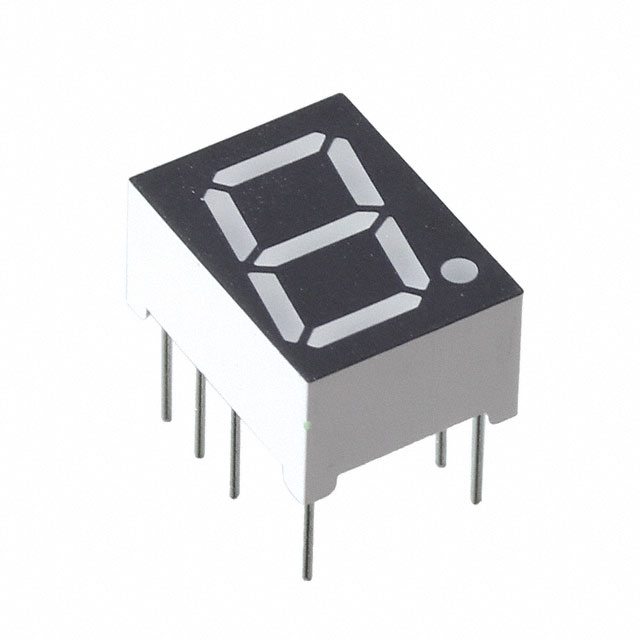

INND-TS40DRCB
INND-TS40DRCB
lmages are for reference only.Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.508" H x 0.379" W x 0.250" D (12.90mm x 9.63mm x 6.36mm) 10-DIP (0.300", 7.62mm)
Quick Inquiry
INND-TS40DRCB
Specifications
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Inolux |
| Series | INND-TS40 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.508" H x 0.379" W x 0.250" D (12.90mm x 9.63mm x 6.36mm) |
| Digit/Alpha Size | 0.40" (10.16mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 20mcd |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 70mW |
| Package / Case | 10-DIP (0.300", 7.62mm) |
| Base Product Number | INND-TS40 |
| Display Format | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | INND-TS40DRAB | INND-TS40DRAG | INND-TS40DRCG | INND-TS30AAB |
| Manufacturer | Inolux | Inolux | Inolux | Inolux |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7-SEG 0.4" SGL RED 10DIP | DISPLAY 7-SEG 0.4" SGL RED 10DIP | DISPLAY 7-SEG 0.4" SGL RED 10DIP | DISPLAY 7SEG 0.3" SGL AMB 10DIP |
| Series | INND-TS40 | INND-TS40 | INND-TS40 | INND-TS30 |
| Packaging | Tube | Tube | Tube | Tube |
