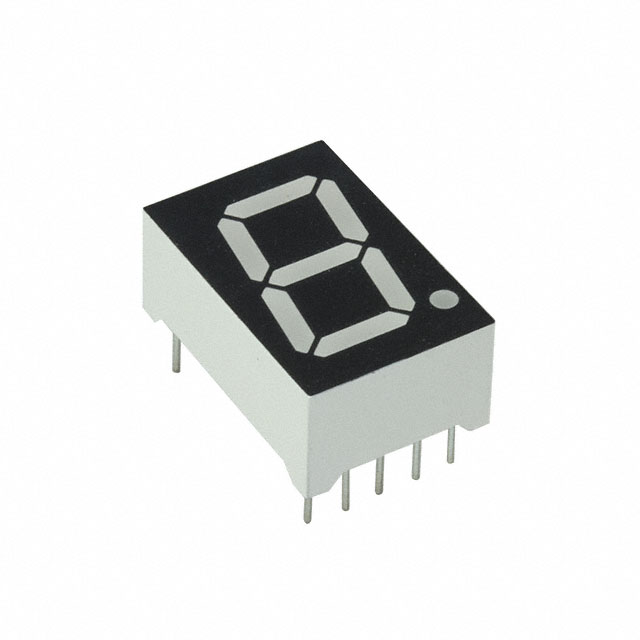

INND-TS56YGCG
lmages are for reference only.Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Yellow-Green 7-Segment 1 Character Common Cathode 2V 20mA 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) 10-DIP (0.600", 15.24mm)
INND-TS56YGCG
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Inolux |
| Series | INND-TS56 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Yellow-Green |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 15mcd |
| Wavelength - Peak | 572nm |
| Power Dissipation (Max) | 70mW |
| Package / Case | 10-DIP (0.600", 15.24mm) |
| Base Product Number | INND-TS56 |
| Display Format | - |
| Product Attribute |  |
|
|
|
| Part Number | INND-TS56YGCB | INND-TS56YAB | INND-TS56YAG | INND-TS56YCB |
| Manufacturer | Inolux | Inolux | Inolux | Inolux |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISP 7SEG 0.56" SGL YLW-GN 10DIP | DISPLAY 7SEG 0.56" SGL YLW 10DIP | DISPLAY 7SEG 0.56" SGL YLW 10DIP | DISPLAY 7SEG 0.56" SGL YLW 10DIP |
| Series | INND-TS56 | INND-TS56 | INND-TS56 | INND-TS56 |
| Packaging | Bulk | Tube | Tube | Tube |
