IPI80P03P405AKSA1
lmages are for reference only.IPI80P03P405AKSA1
MOSFET P-CH 30V 80A TO262-3
DatasheetTO-262-3 Long Leads, I2PAK, TO-262AA
90,616 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 30 V 80A (Tc) 137W (Tc) Through Hole PG-TO262-3-1
IPI80P03P405AKSA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Packaging | Tube |
| RoHS Status | |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 253µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 10300 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 137W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO262-3-1 |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Base Product Number | IPI80P |
| Gate Charge (Qg) (Max) @ Vgs | 130 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

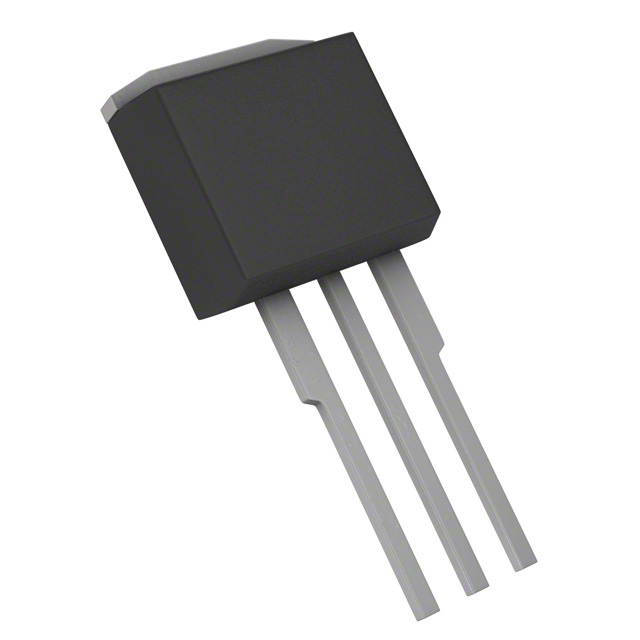

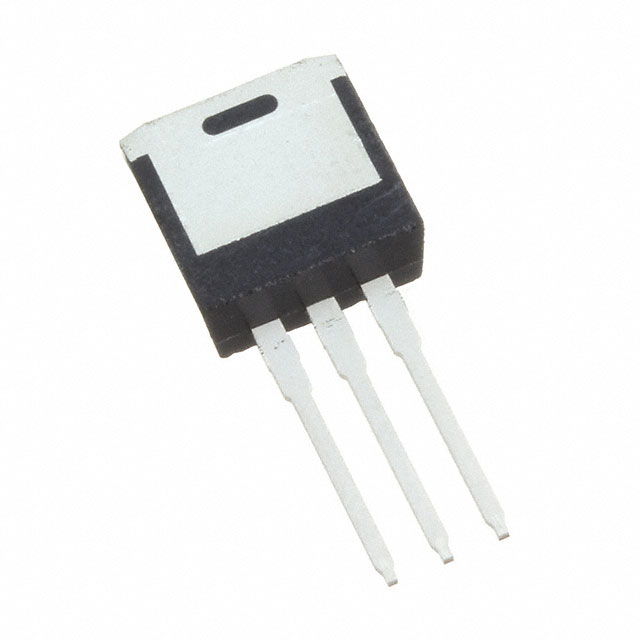

| Part Number | IPI80P03P4L04AKSA1 | IPI80P03P4L07AKSA1 | IPI80P04P405AKSA1 | IPI80P04P4L04AKSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ||||
| Description | MOSFET P-CH 30V 80A TO262-3 | MOSFET P-CH 30V 80A TO262-3 | MOSFET P-CH 40V 80A TO262-3 | MOSFET P-CH 40V 80A TO262-3 |
| Series | OptiMOS™ | OptiMOS™ | OptiMOS™ | OptiMOS™ |
| Packaging | Tube | Tube | Tube | Tube |
