IR2135JTRPBF
lmages are for reference only.IR2135JTRPBF
IR2135J - GATE DRIVER
Datasheet44-LCC (J-Lead), 32 Leads
88,263 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

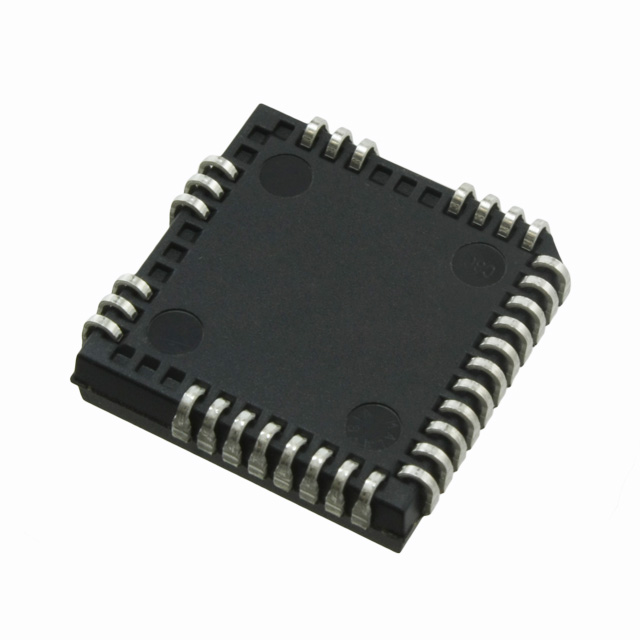

Half-Bridge Gate Driver IC Inverting 44-PLCC, 32 Leads (16.58x16.58)
IR2135JTRPBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 90ns, 40ns |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead), 32 Leads |
| Supplier Device Package | 44-PLCC, 32 Leads (16.58x16.58) |
| Base Product Number | IR2135 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | IR2135JTRPBF | IR2135 | IR2135J | IR2135JPBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | International Rectifier |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | |

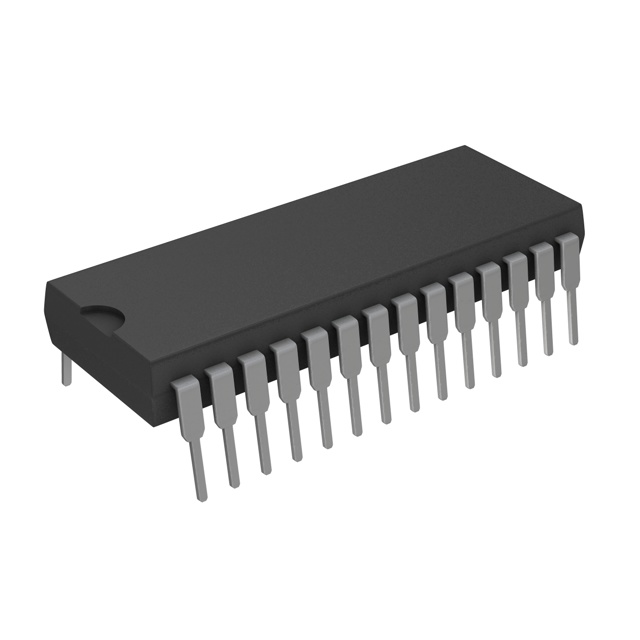

| Description | IC GATE DRVR HALF-BRIDGE 44PLCC | IC GATE DRVR HALF-BRIDGE 28DIP | IC GATE DRVR HALF-BRIDGE 44PLCC | IR2135J - GATE DRIVER |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Bulk |
