IRE-12/10-Q12N-C
lmages are for reference only.IRE-12/10-Q12N-C
DC DC CONVERTER 12V 120W
DatasheetEighth Brick
29,237 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 10A 9V - 36V Input
IRE-12/10-Q12N-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | IRE-Q12 (120W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 120 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 115°C (With Derating) |
| Efficiency | 92% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Eighth Brick |
| Size / Dimension | 2.41" L x 1.01" W x 0.50" H (61.2mm x 25.7mm x 12.7mm) |
| Supplier Device Package | Eighth Brick |
| Control Features | Enable, Active Low |
| Approval Agency | cURus |
| Standard Number | - |
| Base Product Number | IRE-12 |
| Voltage - Isolation | 2.828 kV |
| Product Attribute |  |
 |
 |
 |

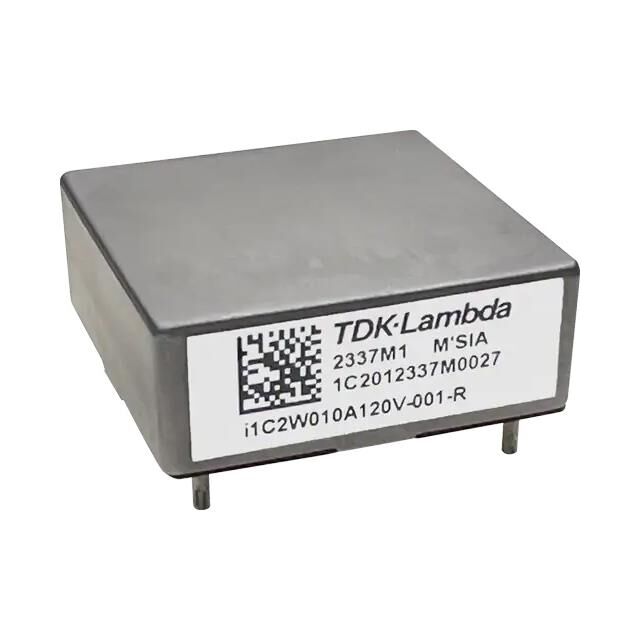

| Part Number | IRE-12/10-Q12NF-C | IRE-12/10-Q12P-C | IRE-12/10-Q12PF-C | I1C2W010A120V-000-R |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | TDK-Lambda |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 12V 120W | DC DC CONVERTER 12V 120W | DC DC CONVERTER 12V 120W | DC DC CONVERTER 9.6-28V 200W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | TDK-Lambda |
| Packaging | Tray | Tray | Tray | Bulk |
