IRF40DM229
lmages are for reference only.IRF40DM229
IRF40 - 12V-300V N-CHANNEL POWER
DatasheetDirectFET™ Isometric MF
27,057 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 159A (Tc) 83W (Tc) Surface Mount DirectFET™ Isometric MF
IRF40DM229
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | StrongIRFET™ |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 159A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.85mOhm @ 97A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 100µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5317 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 83W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DirectFET™ Isometric MF |
| Package / Case | DirectFET™ Isometric MF |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 161 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |

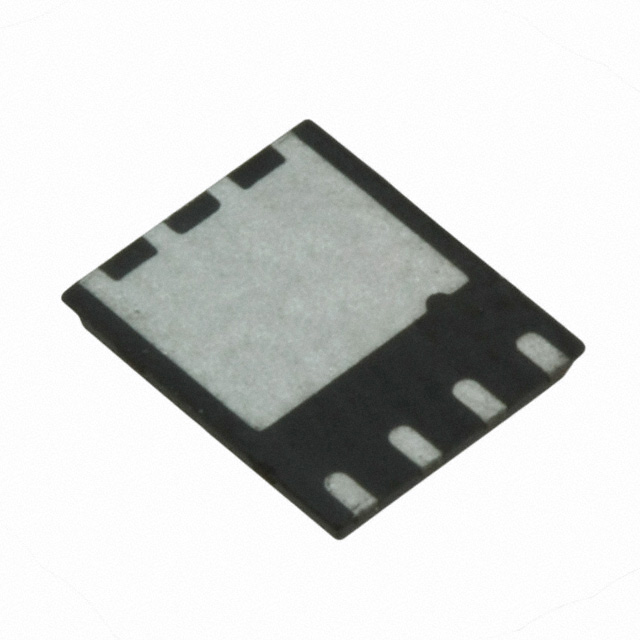

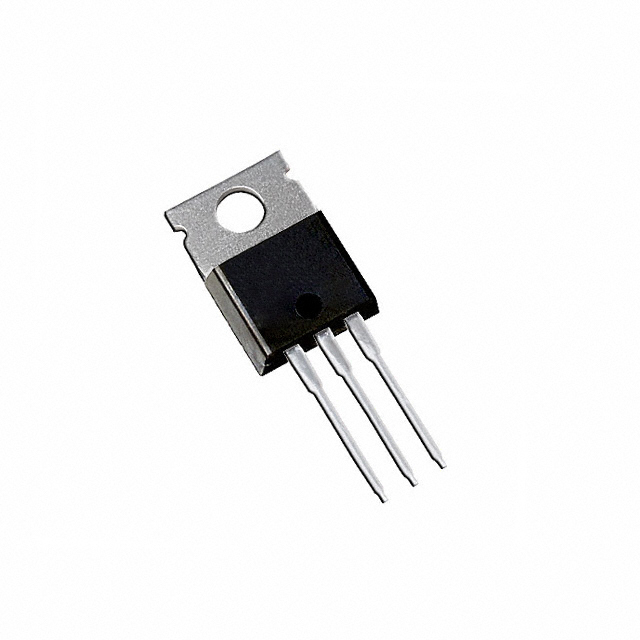

| Part Number | IRF40DM229 | IRF40DM229 | IRF40B207 | IRF40H210 |
| Manufacturer | Infineon Technologies | International Rectifier | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 40V 159A DIRECTFET | MOSFET N-CH 40V 159A DIRECTFET | MOSFET N-CH 40V 95A TO220AB | MOSFET N-CH 40V 100A 8PQFN |
| Series | StrongIRFET™ | StrongIRFET™ | HEXFET®, StrongIRFET™ | HEXFET®, StrongIRFET™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tube | Tape & Reel (TR) |
