IRF6636
lmages are for reference only.IRF6636
MOSFET N-CH 20V 18A DIRECTFET
DatasheetDirectFET™ Isometric ST
38,256 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 20 V 18A (Ta), 81A (Tc) 2.2W (Ta), 42W (Tc) Surface Mount DIRECTFET™ ST
IRF6636
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Ta), 81A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id | 2.45V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2420 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.2W (Ta), 42W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DIRECTFET™ ST |
| Package / Case | DirectFET™ Isometric ST |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 27 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | IRF6631TRPBF | IRF6633ATR1PBF | IRF6633ATRPBF | IRF6633TR1PBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ||||

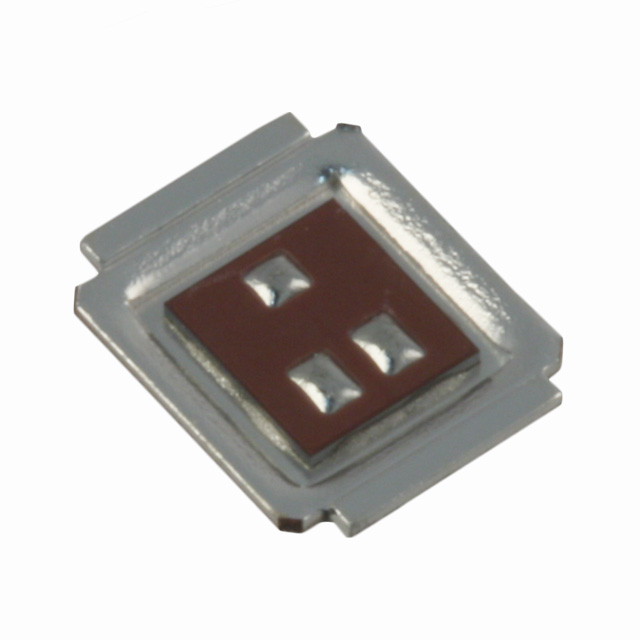

| Description | MOSFET N-CH 30V 13A DIRECTFET | MOSFET N-CH 20V 16A DIRECTFET | MOSFET N-CH 20V 16A DIRECTFET | MOSFET N-CH 20V 16A DIRECTFET |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
