IRF6691TRPBF

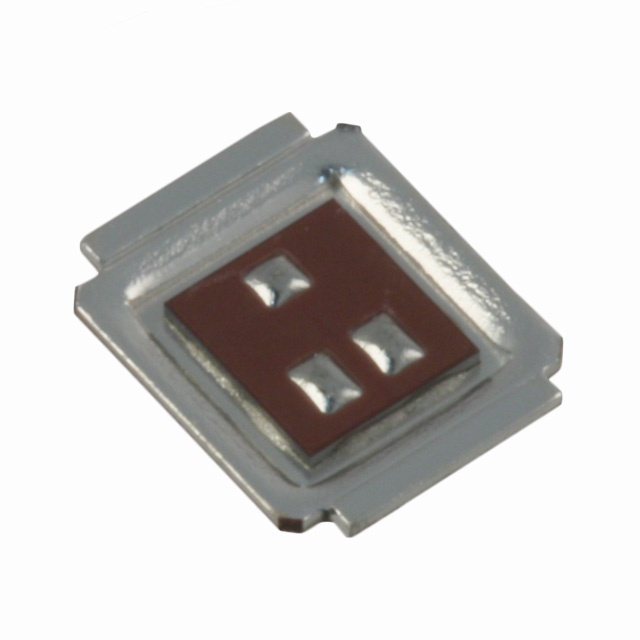

lmages are for reference only.IRF6691TRPBF
MOSFET N-CH 20V 32A DIRECTFET
DatasheetDirectFET™ Isometric MT
85,703 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 20 V 32A (Ta), 180A (Tc) 2.8W (Ta), 89W (Tc) Surface Mount DIRECTFET™ MT
IRF6691TRPBF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 32A (Ta), 180A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.8mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 6580 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 89W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DIRECTFET™ MT |
| Package / Case | DirectFET™ Isometric MT |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 71 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | IRF6691TR1 | IRF6691TR1PBF | IRC530PBF | IRC540PBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 20V 32A DIRECTFET | MOSFET N-CH 20V 32A DIRECTFET | MOSFET N-CH 100V 14A TO220-5 | MOSFET N-CH 100V 28A TO220-5 |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tube |
