IRF740SPBF

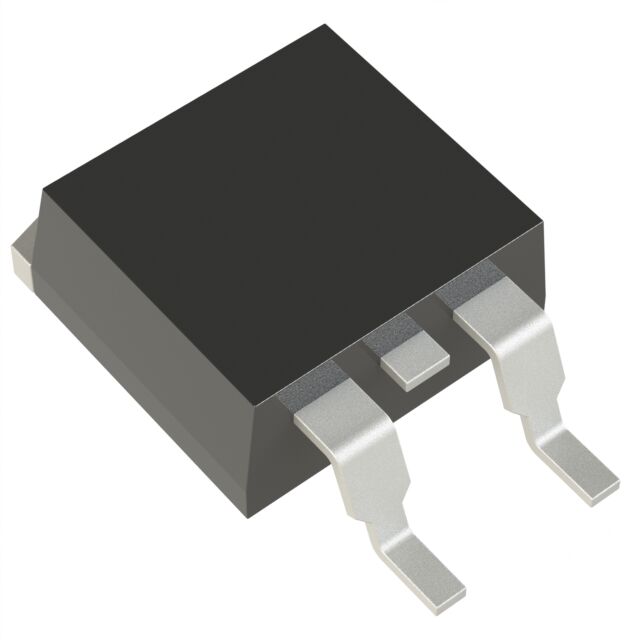

lmages are for reference only.IRF740SPBF
MOSFET N-CH 400V 10A D2PAK
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
45,543 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 400 V 10A (Tc) 3.1W (Ta), 125W (Tc) Surface Mount TO-263 (D2PAK)
IRF740SPBF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 400 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1400 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263 (D2PAK) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | IRF740 |
| Gate Charge (Qg) (Max) @ Vgs | 63 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | IRF740S | IRF740S2515 | IRF740STRL | IRF740STRLPBF |
| Manufacturer | Vishay Siliconix | Harris Corporation | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | RoHS non-compliant | Not applicable | RoHS non-compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 400V 10A D2PAK | 10A, 400V, 0.55OHM, N-CHANNEL, P | MOSFET N-CH 400V 10A D2PAK | MOSFET N-CH 400V 10A D2PAK |
| Series | - | * | - | - |
| Packaging | Tube | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
