IRF7504TR

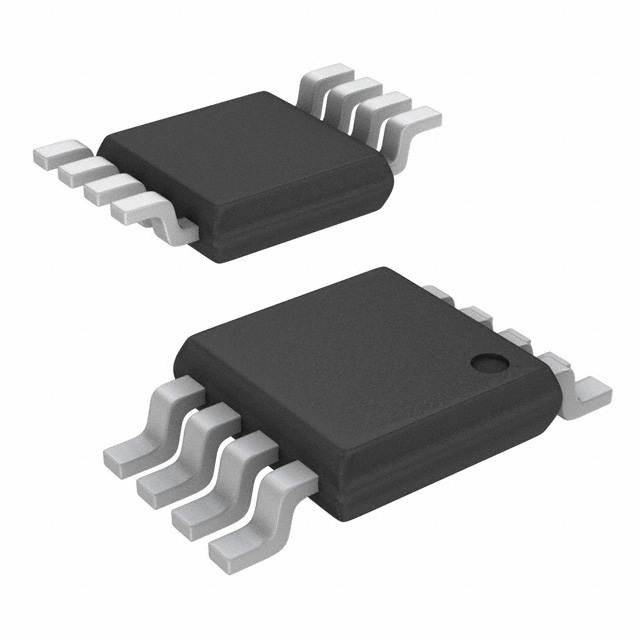

lmages are for reference only.IRF7504TR
MOSFET 2P-CH 20V 1.7A MICRO8
Datasheet8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
59,654 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 1.7A 1.25W Surface Mount Micro8™
IRF7504TR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.7A |
| Rds On (Max) @ Id, Vgs | 270mOhm @ 1.2A, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.2nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 240pF @ 15V |
| Power - Max | 1.25W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | Micro8™ |
| Base Product Number | IRF7504 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | IRF7504TRPBF | IRF7501TR | IRF7501TRPBF | IRF7503TR |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | MOSFET 2P-CH 20V 1.7A MICRO8 | MOSFET 2N-CH 20V 2.4A MICRO8 | MOSFET 2N-CH 20V 2.4A MICRO8 | MOSFET 2N-CH 30V 2.4A MICRO8 |
| Series | HEXFET® | - | HEXFET® | - |
| Packaging | Tape & Reel (TR) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) |
