IRF9540L

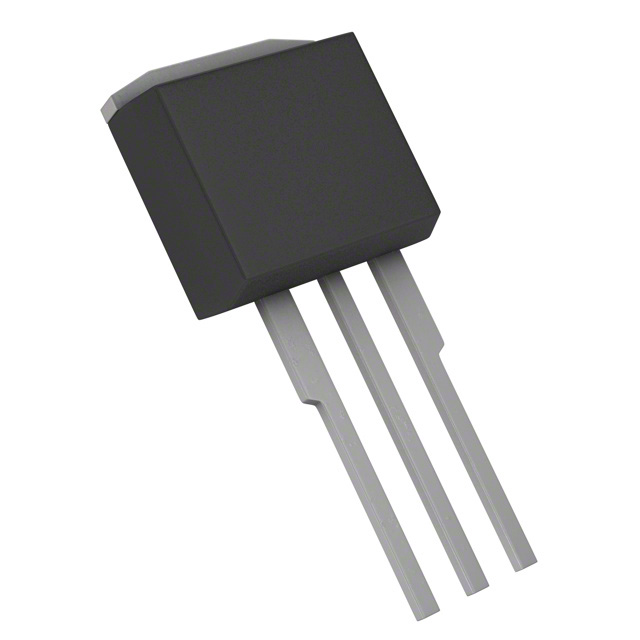

lmages are for reference only.IRF9540L
MOSFET P-CH 100V 19A I2PAK
DatasheetTO-262-3 Long Leads, I2PAK, TO-262AA
29,936 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 100 V 19A (Tc) Through Hole I2PAK
IRF9540L
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1400 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I2PAK |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Base Product Number | IRF9540 |
| Gate Charge (Qg) (Max) @ Vgs | 61 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | IRF9540 | IRF9540 | IRF9540NL | IRF9540NLPBF |
| Manufacturer | Fairchild Semiconductor | Vishay Siliconix | Infineon Technologies | Infineon Technologies |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | |
| Description | IRF9540 - 19A, 100V, 0.2OHM, P-C | MOSFET P-CH 100V 19A TO220AB | MOSFET P-CH 100V 23A TO262 | MOSFET P-CH 100V 23A TO262 |
| Series | - | - | HEXFET® | HEXFET® |
| Packaging | Bulk | Tube | Tube | Tube |
