IRFH8316TRPBF-IR
lmages are for reference only.IRFH8316TRPBF-IR
IRFH8316 - HEXFET POWER MOSFET
Datasheet8-PowerTDFN
64,150 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 27A (Ta), 50A (Tc) 3.6W (Ta), 59W (Tc) Surface Mount 8-PQFN (5x6)
IRFH8316TRPBF-IR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | HEXFET® |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 27A (Ta), 50A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.95mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 50µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3610 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.6W (Ta), 59W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 59 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|

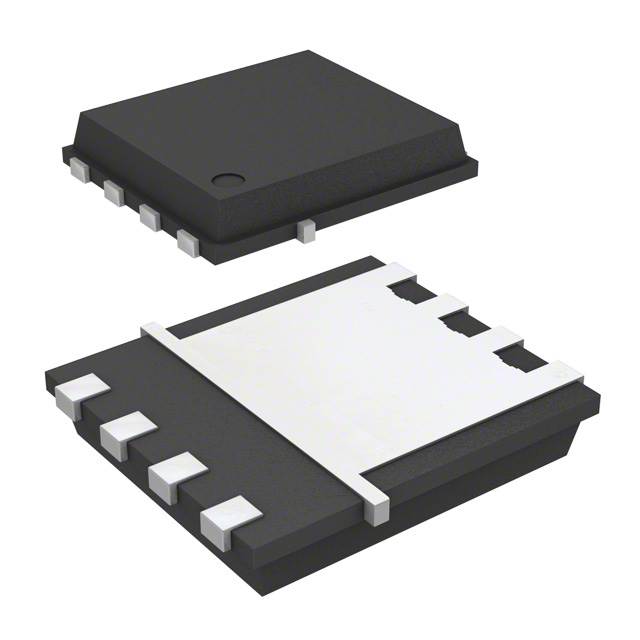

| Part Number | IRFH8316TRPBF | IRFH8303TRPBF | IRFH8307TRPBF | IRFH8311TRPBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 30V 27A/50A 8PQFN | MOSFET N-CH 30V 43A/100A 8PQFN | MOSFET N-CH 30V 42A/100A 8PQFN | MOSFET N CH 30V 32A PQFN5X6 |
| Series | HEXFET® | HEXFET®, StrongIRFET™ | HEXFET®, StrongIRFET™ | HEXFET® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
