Product CatalogPart Number
IRFHM4234TRPBF
Manufacturer
International RectifierDescription
HEXFET POWER MOSFET
Datasheet
DatasheetPackage
8-TQFN Exposed Pad
In Stock
27,524 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IRFHM4234TRPBF
IRFHM4234TRPBF
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 25 V 20A (Ta) 2.8W (Ta), 28W (Tc) Surface Mount
Quick Inquiry
IRFHM4234TRPBF
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | FASTIRFET™, HEXFET® |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.4mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 25µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1011 pF @ 13 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 28W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 8-TQFN Exposed Pad |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |
| Part Number | IRFHM4231TRPBF | IRFHM4234TRPBF | IRFH3702TR2PBF | IRFH3702TRPBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | |||
| Description | MOSFET N-CH 25V 40A 8PQFN | MOSFET N-CH 25V 20A PQFN | MOSFET N-CH 30V 16A 8PQFN | MOSFET N-CH 30V 16A/42A 8PQFN |
| Series | HEXFET® | FASTIRFET™, HEXFET® | - | HEXFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
IRFHM3911TRPBF
Infineon Technologies

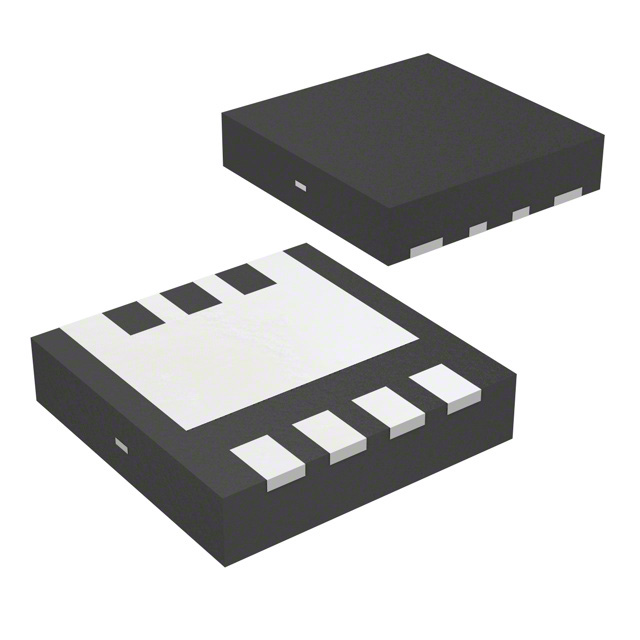

IRFHM4226TRPBF
Infineon Technologies
IRFHM4231TRPBF
Infineon Technologies
IRFHM4234TRPBF
Infineon Technologies
IRFHM7194TRPBF
Infineon Technologies
IRFHM8228TRPBF
Infineon Technologies
IRFHM8235TRPBF
Infineon Technologies
IRFHM830DTR2PBF
Infineon Technologies

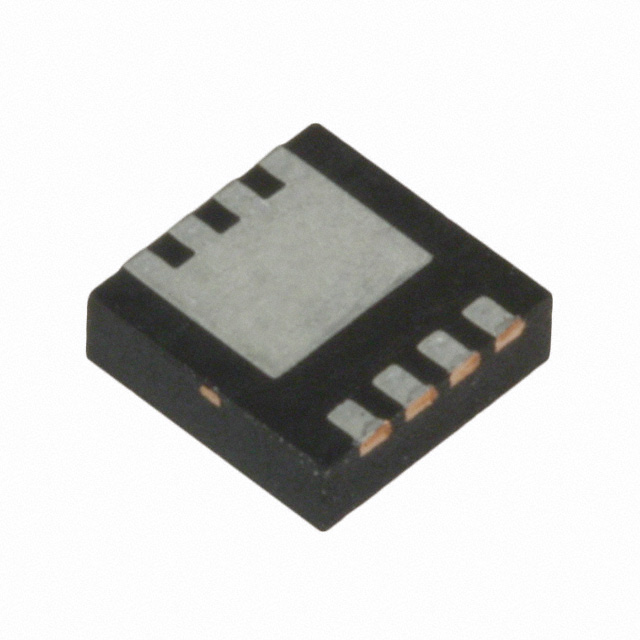

IRFHM830DTRPBF
Infineon Technologies
IRFHM830TR2PBF
Infineon Technologies
IRFHM830TRPBF
Infineon Technologies
IRFHM831TR2PBF
Infineon Technologies

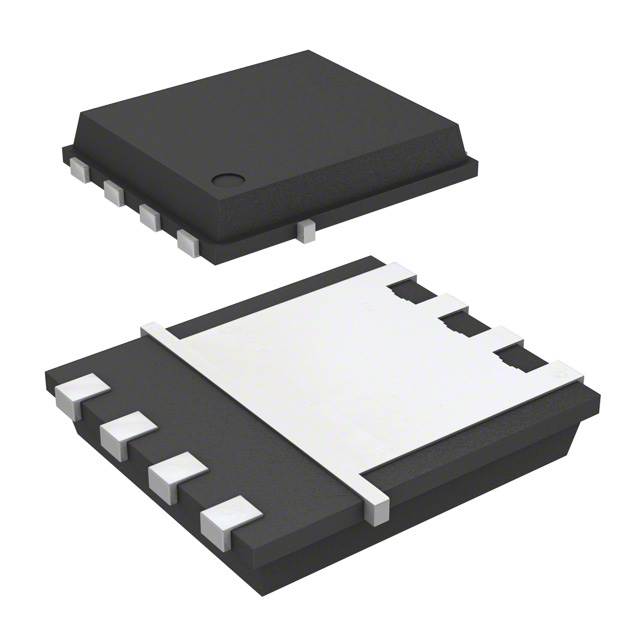

IRFHM831TRPBF
Infineon Technologies
IRFHM8326TRPBF
Infineon Technologies

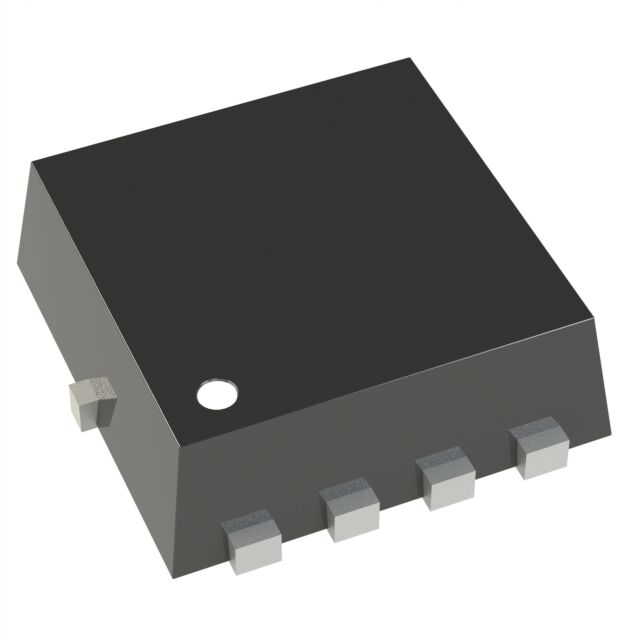

IRFHM8326TRPBFXTMA1
