IRFI4024H-117P
lmages are for reference only.IRFI4024H-117P
MOSFET 2N-CH 55V 11A TO220-5
DatasheetTO-220-5 Full Pack
52,201 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 55V 11A 14W Through Hole TO-220-5 Full-Pak
IRFI4024H-117P
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 55V |
| Current - Continuous Drain (Id) @ 25°C | 11A |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 7.7A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 13nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 320pF @ 50V |
| Power - Max | 14W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 Full Pack |
| Supplier Device Package | TO-220-5 Full-Pak |
| Base Product Number | IRFI4024 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

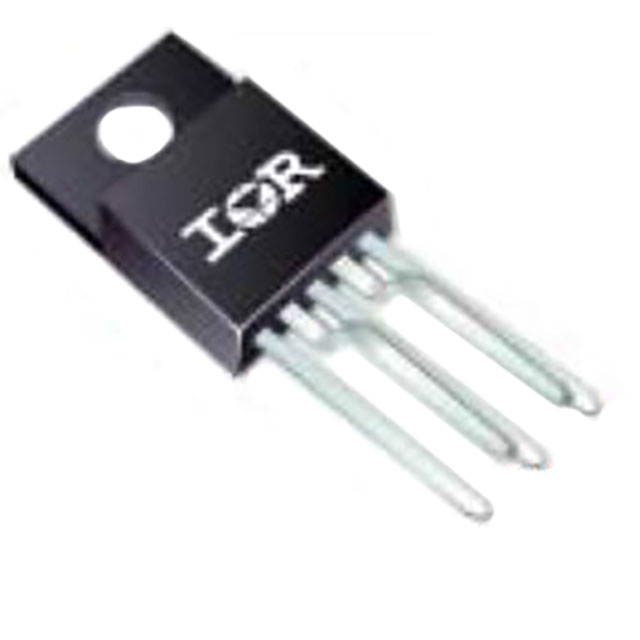

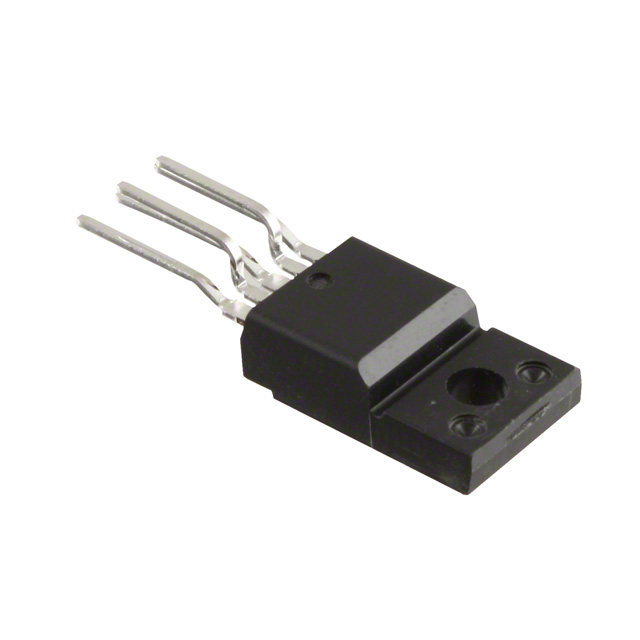

| Part Number | IRFI4019H-117P | IRFI4019H-117PXKMA1 | IRFI4019HG-117P | IRFI4020H-117P |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET 2N-CH 150V 8.7A TO220-5 | MOSFET 2N-CH 150V 8.7A TO220-5 | MOSFET 2N-CH 150V 8.7A TO220-5 | MOSFET 2N-CH 200V 9.1A TO220-5 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
