Product CatalogPart Number
IRFP360
Manufacturer
Vishay SiliconixDescription
MOSFET N-CH 400V 23A TO247-3
Datasheet
DatasheetPackage
TO-247-3
In Stock
79,370 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IRFP360
IRFP360

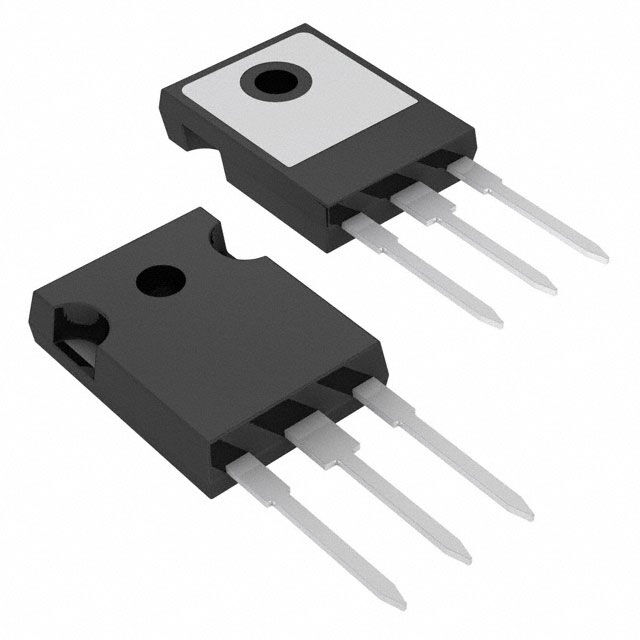

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 400 V 23A (Tc) 280W (Tc) Through Hole TO-247AC
Quick Inquiry
IRFP360
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 400 V |
| Current - Continuous Drain (Id) @ 25°C | 23A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 14A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4500 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 280W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247AC |
| Package / Case | TO-247-3 |
| Base Product Number | IRFP360 |
| Gate Charge (Qg) (Max) @ Vgs | 210 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
|
| Part Number | IRFP360LC | IRFP360LCPBF | IRFP360PBF | IRFP362 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Harris Corporation |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | MOSFET N-CH 400V 23A TO247-3 | MOSFET N-CH 400V 23A TO247-3 | MOSFET N-CH 400V 23A TO247-3 | N-CHANNEL POWER MOSFET |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Bulk |
