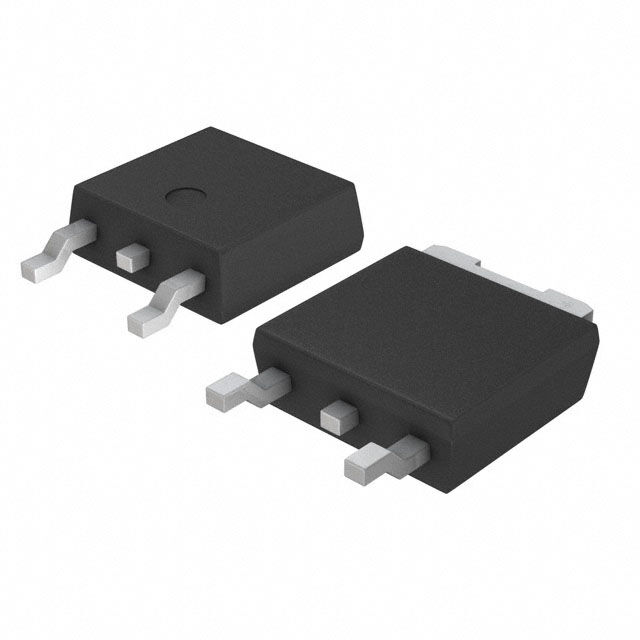

IRFR420TR
lmages are for reference only.IRFR420TR
MOSFET N-CH 500V 2.4A DPAK
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
44,171 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 500 V 2.4A (Tc) 2.5W (Ta), 42W (Tc) Surface Mount DPAK
IRFR420TR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 2.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 1.4A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 360 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 42W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | IRFR420 |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | IRFR420T | IRFR420TRL | IRFR420TRLPBF | IRFR420TRPBF |

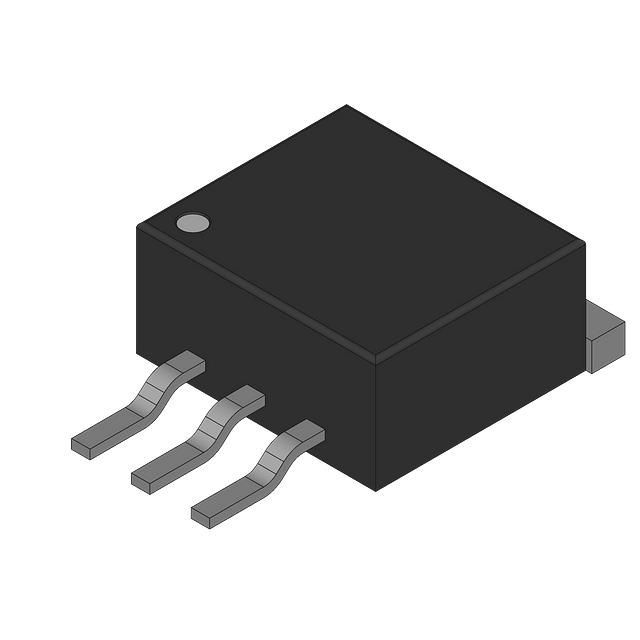

| Manufacturer | Fairchild Semiconductor | Vishay Siliconix | Vishay Siliconix | Infineon Technologies |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 2.5A, 500V, 3OHM, N-CHANNEL MOSF | MOSFET N-CH 500V 2.4A DPAK | MOSFET N-CH 500V 2.4A DPAK | MOSFET N-CH 500V 2.4A DPAK |
| Series | * | - | - | HEXFET® |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
