IRFU12N25D
lmages are for reference only.IRFU12N25D
MOSFET N-CH 250V 14A IPAK
DatasheetTO-251-3 Short Leads, IPAK, TO-251AA
55,302 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 250 V 14A (Tc) 144W (Tc) Through Hole IPAK (TO-251AA)
IRFU12N25D
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 260mOhm @ 8.4A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 810 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 144W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | IPAK (TO-251AA) |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 35 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

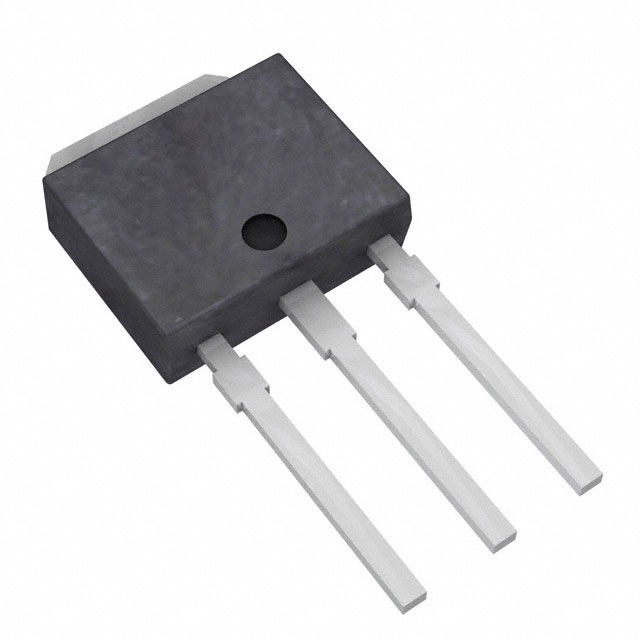

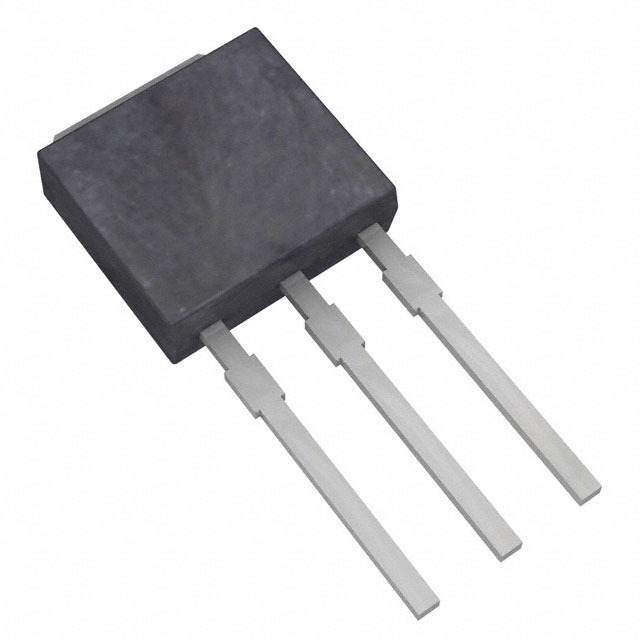

| Part Number | IRFU12N25DPBF | IRFU010 | IRFU014 | IRFU014PBF |
| Manufacturer | Infineon Technologies | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 250V 14A IPAK | MOSFET N-CH 50V 8.2A TO251AA | MOSFET N-CH 60V 7.7A TO251AA | MOSFET N-CH 60V 7.7A TO251AA |
| Series | HEXFET® | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
