IGBT 600 V 13 A 60 W Surface Mount D2PAK
IRG4BC20UDSTRRP
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Tube |
| RoHS Status | Not applicable |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 13 A |
| Current - Collector Pulsed (Icm) | 52 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 6.5A |
| Power - Max | 60 W |
| Switching Energy | 160µJ (on), 130µJ (off) |
| Input Type | Standard |
| Gate Charge | 27 nC |
| Td (on/off) @ 25°C | 39ns/93ns |
| Test Condition | 480V, 6.5A, 50Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| Reverse Recovery Time (trr) | 37 ns |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | IRG4BC20UDSTRLP | IRG4BC20UDSTRRP | IRG4BC20U | IRG4BC20U-S |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||

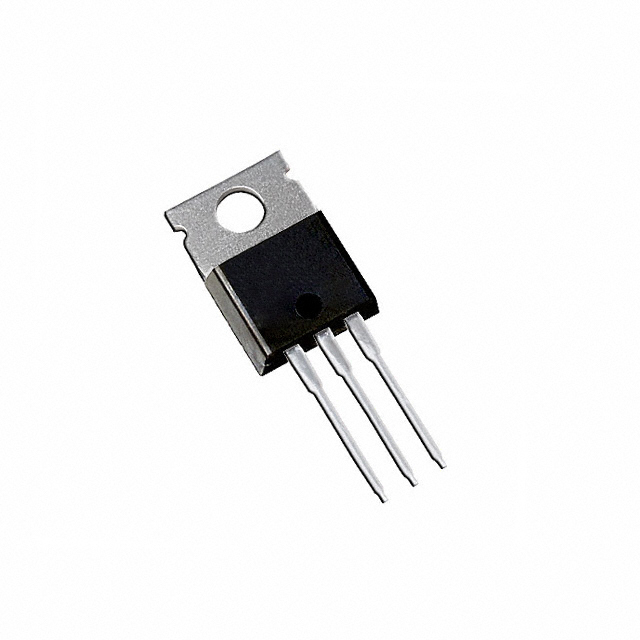

| Description | IGBT 600V 13A 60W D2PAK | IGBT 600V 13A 60W D2PAK | IGBT 600V 13A 60W TO220AB | IGBT 600V 16A 60W TO220-3 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tube |
