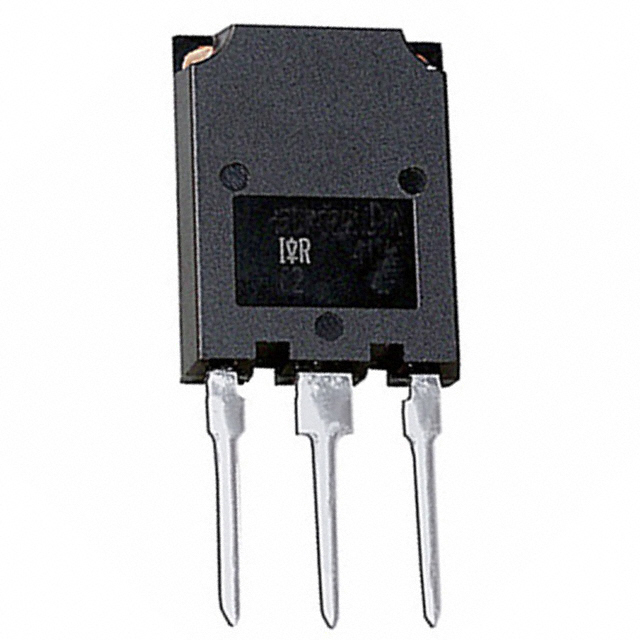

IGBT 1200 V 78 A 350 W Through Hole SUPER-247™ (TO-274AA)
IRG4PSH71KDPBF
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 78 A |
| Current - Collector Pulsed (Icm) | 156 A |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 42A |
| Power - Max | 350 W |
| Switching Energy | 5.68mJ (on), 3.23mJ (off) |
| Input Type | Standard |
| Gate Charge | 410 nC |
| Td (on/off) @ 25°C | 67ns/230ns |
| Test Condition | 800V, 42A, 5Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-274AA |
| Supplier Device Package | SUPER-247™ (TO-274AA) |
| Reverse Recovery Time (trr) | 107 ns |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | IRG4PSH71KD | IRG4PSH71KDPBF | IRG4PSH71KPBF | IRG4PSH71U |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | IGBT 1200V 78A 350W SUPER247 | IGBT 1200V 78A SUPER247 | IGBT 1200V 78A 350W SUPER247 | IGBT 1200V 99A 350W SUPER247 |
| Series | - | - | - | - |
| Packaging | Bag | Tube | Bag | Bag |
