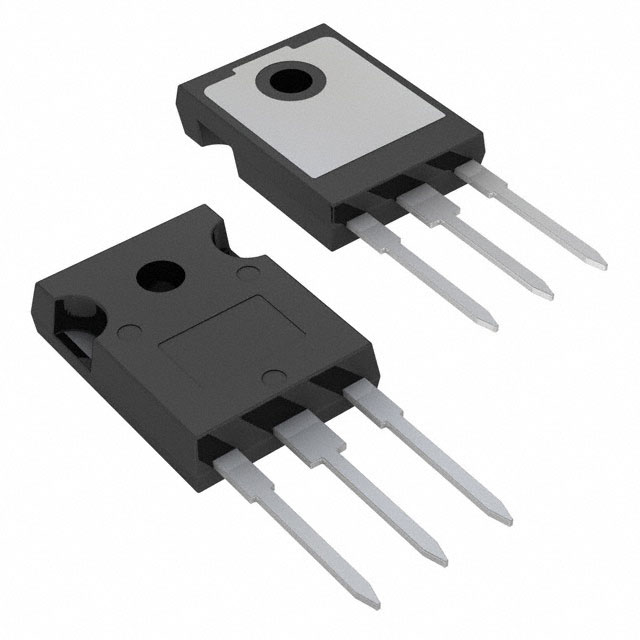

IGBT 1200 V 70 A 320 W Through Hole TO-247AD
IRG7PH44K10D-EPBF
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 70 A |
| Current - Collector Pulsed (Icm) | 100 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 25A |
| Power - Max | 320 W |
| Switching Energy | 2.1mJ (on), 1.3mJ (off) |
| Input Type | Standard |
| Gate Charge | 200 nC |
| Td (on/off) @ 25°C | 75ns/315ns |
| Test Condition | 600V, 25A, 10Ohm, 15V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AD |
| Reverse Recovery Time (trr) | 130 ns |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | IRG7PH44K10DPBF | IRG7PH42U-EP | IRG7PH42U-EP | IRG7PH42UD-EP |
| Manufacturer | Infineon Technologies | Infineon Technologies | International Rectifier | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | |||
| Description | IGBT 1200V 70A 320W TO247AC | IGBT 1200V 90A 385W TO247AD | IGBT | IGBT 1200V 85A 320W TO247AD |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Bulk | Tube |
