IRG7PH46U-EP
Manufacturer
International RectifierDescription
IGBT TRENCH 1200V 130A TO247AD
Datasheet
DatasheetPackage
TO-247-3
In Stock
15,219 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IRG7PH46U-EP
IRG7PH46U-EP
lmages are for reference only.Payment Methods
Delivery Services

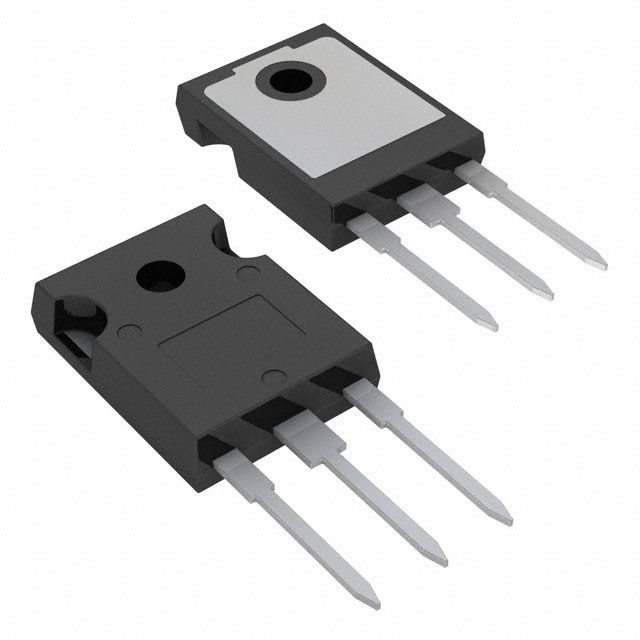

IGBT Trench 1200 V 130 A 469 W Through Hole TO-247AD
Quick Inquiry
IRG7PH46U-EP
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 130 A |
| Current - Collector Pulsed (Icm) | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 40A |
| Power - Max | 469 W |
| Switching Energy | 2.56mJ (on), 1.78mJ (off) |
| Input Type | Standard |
| Gate Charge | 220 nC |
| Td (on/off) @ 25°C | 45ns/410ns |
| Test Condition | 600V, 40A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AD |
| Reverse Recovery Time (trr) | - |
| Base Product Number | - |
