IRH-24/6.3-T110PF-C

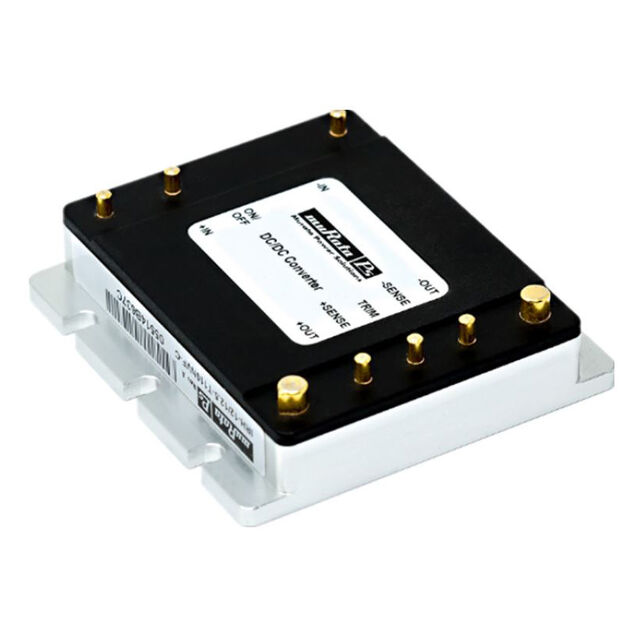

lmages are for reference only.IRH-24/6.3-T110PF-C
DC DC CONVERTER 24V 150W
DatasheetHalf Brick
82,939 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 6.25A 57.6V - 160V Input
IRH-24/6.3-T110PF-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | IRH (150W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 57.6V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6.25A |
| Power (Watts) | 150 W |
| Applications | ITE (Commercial), Railway |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.29" L x 2.20" W x 12.7" H (58.2mm x 55.9mm x 12.7mm) |
| Supplier Device Package | Half Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | IRH-24 |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
|
 |
|
| Part Number | IRH-24/6.3-T110P-C | IRH-24/6.3-T110P-C | IRH-24/6.3-T110PVF-C | IRH-24/6.3-T110PVF-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 24V 150W | DC DC CONVERTER 24V 150W | DC DC CONVERTER 24V 150W | DC DC CONVERTER 24V 150W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tray | Tray | Tray | Tray |
