Product CatalogPart Number
IRL60HS118
Manufacturer
Infineon TechnologiesDescription
MOSFET N-CH 60V 18.5A 6PQFN
Datasheet
DatasheetPackage
6-PowerVDFN
In Stock
88,658 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IRL60HS118
IRL60HS118
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 60 V 18.5A (Tc) 11.5W (Tc) Surface Mount 6-PQFN (2x2) (DFN2020)
Quick Inquiry
IRL60HS118
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 18.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 10µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 660 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 11.5W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-PQFN (2x2) (DFN2020) |
| Package / Case | 6-PowerVDFN |
| Base Product Number | IRL60HS118 |
| Gate Charge (Qg) (Max) @ Vgs | 8 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | IRL60B216 | IRL60S216 | IRL60SC216ARMA1 | IRL60SL216 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

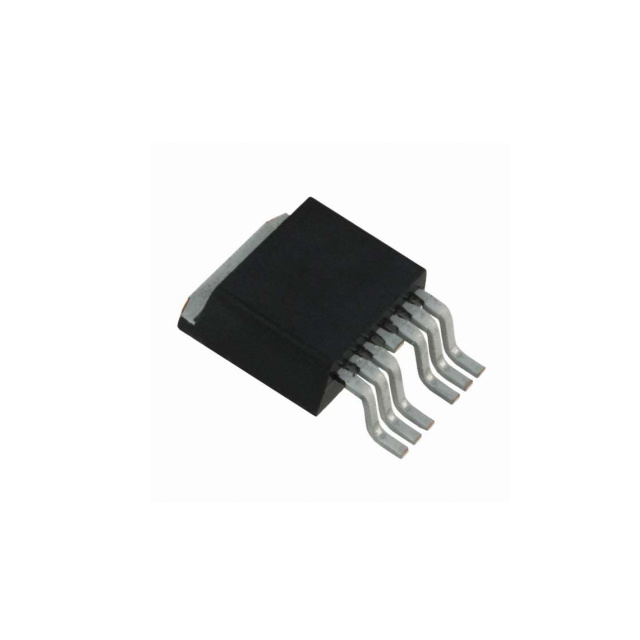

| Description | MOSFET N-CH 60V 195A TO220AB | MOSFET N-CH 60V 195A D2PAK | MOSFET N-CH 60V 324A TO263-7 | MOSFET N-CH 60V 195A TO262-3 |
| Series | HEXFET®, StrongIRFET™ | HEXFET®, StrongIRFET™ | StrongIRFET™ | HEXFET®, StrongIRFET™ |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
