IRS2001MPBF
lmages are for reference only.IRS2001MPBF
IC GATE DRVR HALF-BRIDGE 16MLPQ
Datasheet16-VFQFN Exposed Pad
46,881 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

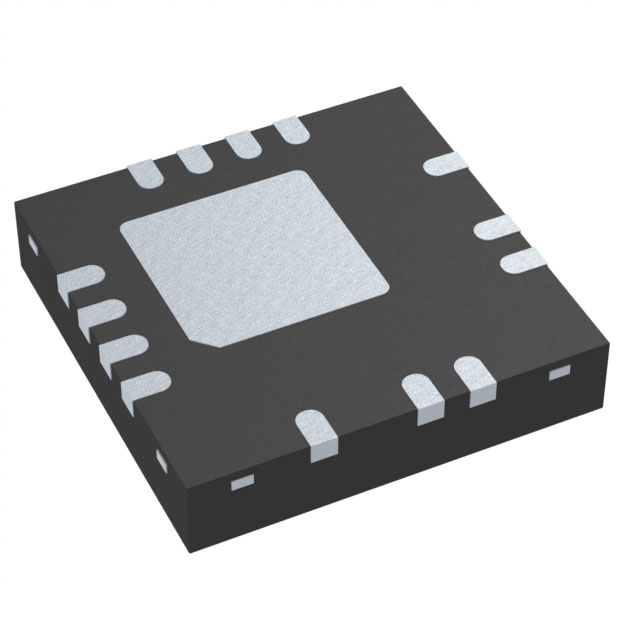

Half-Bridge Gate Driver IC Non-Inverting 16-MLPQ (4x4)
IRS2001MPBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 290mA, 600mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 200 V |
| Rise / Fall Time (Typ) | 70ns, 35ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-MLPQ (4x4) |
| Base Product Number | IRS2001 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | IRS2001MTRPBF | IRS2001PBF | IRS2001PBF | IRS2001PBF-INF |
| Manufacturer | Infineon Technologies | Infineon Technologies | International Rectifier | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

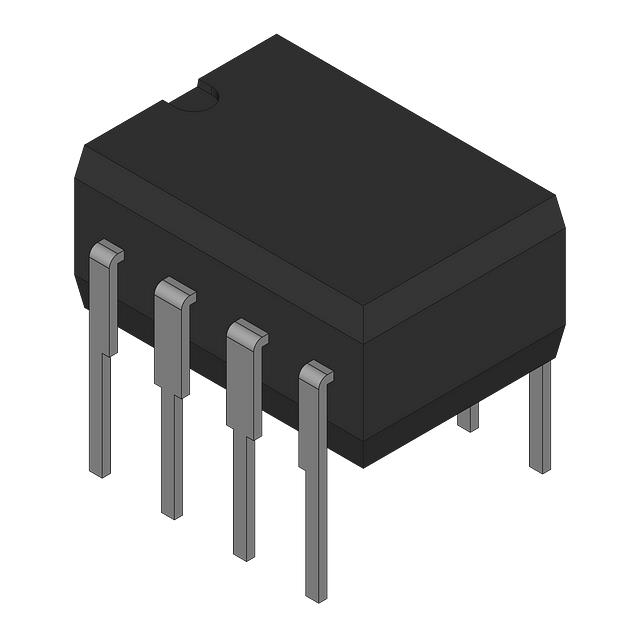

| Description | IC GATE DRVR HALF-BRIDGE 16MLPQ | IC GATE DRVR HALF-BRIDGE 8DIP | BUFFER/INVERTER BASED PERIPHERAL | BUFFER/INVERTER BASED PERIPHERAL |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Bulk | Bulk |
